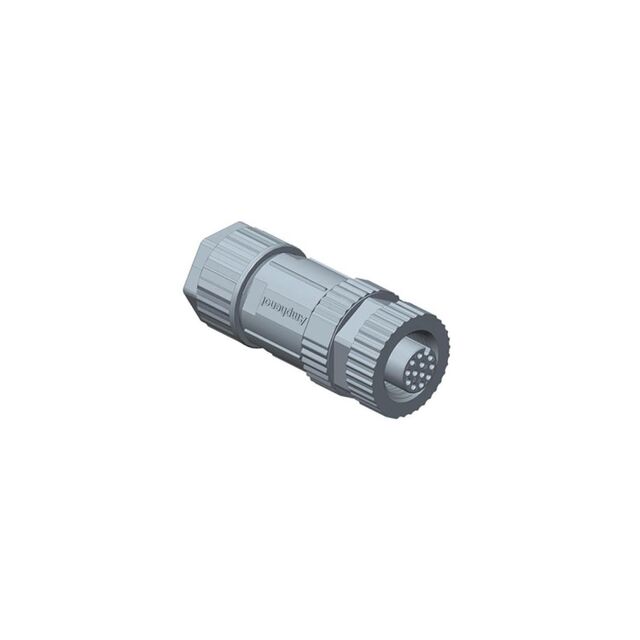

M12D-04BFFA-SL8001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, FEMALE, 4 POSITIONS, SOLDER SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M12D-04BFFA-SL8001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, FEMALE, 4 POSITIONS, SOLDER SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12D-04BFFA-SL8001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.90 | |
| 10 | $ 8.91 | |||
| 30 | $ 8.39 | |||
| 50 | $ 8.18 | |||
| 100 | $ 7.96 | |||
| 250 | $ 7.10 | |||
| 500 | $ 6.67 | |||
| 1000 | $ 5.89 | |||
Description
General part information
M12D-04BFFA Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
