0002061101-08-W0-D

Active

Molex

8" PRE-CRIMP A2102 WHITE

Search across all available documentation for this part.

Active

Molex

8" PRE-CRIMP A2102 WHITE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0002061101-08-W0-D	0002061101 Series

Color	White	Brown, Black, Red, White, Blue, Violet, Yellow, Slate, Green
Contact End	Socket to Socket	Socket to Socket, Socket to Cable (Round)
Contact Finish	Tin	Tin
Contact Finish Thickness	0.51 µm	0.51 µm
Contact Finish Thickness	20 µin	20 µin
Length	203.2 mm	76.2 - 304.8 mm
Length	8 in	6 - 8 in
Length	-	3 - 12 in
Length	-	101.6 - 279.4 mm
Number of Conductors	1	1
Number of Rows	1	1
Wire Gauge	20 AWG	18 - 22 AWG

3" PRE-CRIMP A2101 BROWN

...

Part	Number of Rows	Number of Conductors	Length [x]	Length	Contact Finish	Contact End	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Length [x]	Length
Molex 0002061101-03-N2-D	1	1	3 in	76.2 mm	Tin	Socket to Socket	Brown	0.51 µm	20 µin	22 AWG
Molex 0002061101-05-B0	1	1	5 in		Tin	Socket to Cable (Round)	Black	0.51 µm	20 µin	20 AWG	127 mm
Molex 0002061101-03-R2	1	1	3 in	76.2 mm	Tin	Socket to Cable (Round)	Red	0.51 µm	20 µin	22 AWG
Molex 0002061101-08-W0-D	1	1		203.2 mm	Tin	Socket to Socket	White	0.51 µm	20 µin	20 AWG		8 in
Molex 0002061101-10-L0-D	1	1	10 in	254 mm	Tin	Socket to Socket	Blue	0.51 µm	20 µin	20 AWG
Molex 0002061101-04-V2	1	1	4 "		Tin	Socket to Cable (Round)	Violet	0.51 µm	20 µin	22 AWG	101.6 mm
Molex 0002061101-03-Y0-D	1	1	3 in	76.2 mm	Tin	Socket to Socket	Yellow	0.51 µm	20 µin	20 AWG
Molex 0002061101-04-B9-D	1	1	4 "		Tin	Socket to Socket	Black	0.51 µm	20 µin	18 AWG	101.6 mm
Molex 0002061101-06-B2	1	1		152.4 mm	Tin	Socket to Cable (Round)	Black	0.51 µm	20 µin	22 AWG		6 in
Molex 0002061101-02-R9	1	1			Tin	Socket to Cable (Round)	Red	0.51 µm	20 µin	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

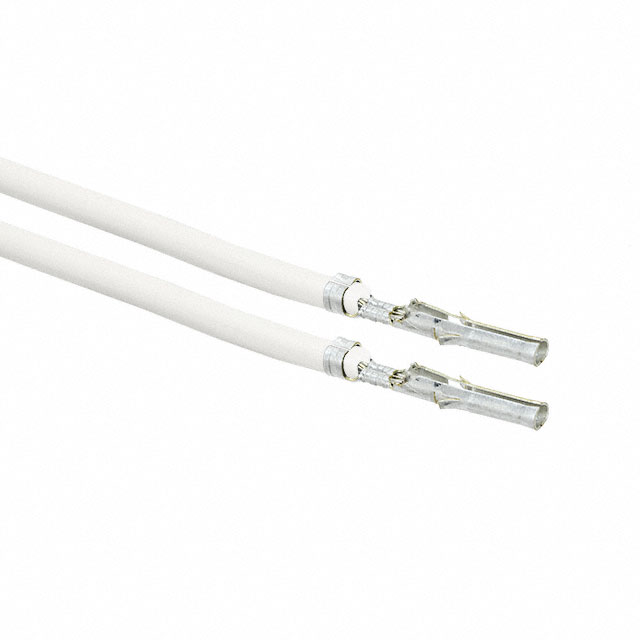

White 20 AWG Jumper Lead Socket to Socket Tin 8.00" (203.20mm)

Technical documentation and resources

No documents available
