0002061101-04-B9-D

Active

Molex

4" PRE-CRIMP A2103 BLACK

Search across all available documentation for this part.

Active

Molex

4" PRE-CRIMP A2103 BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

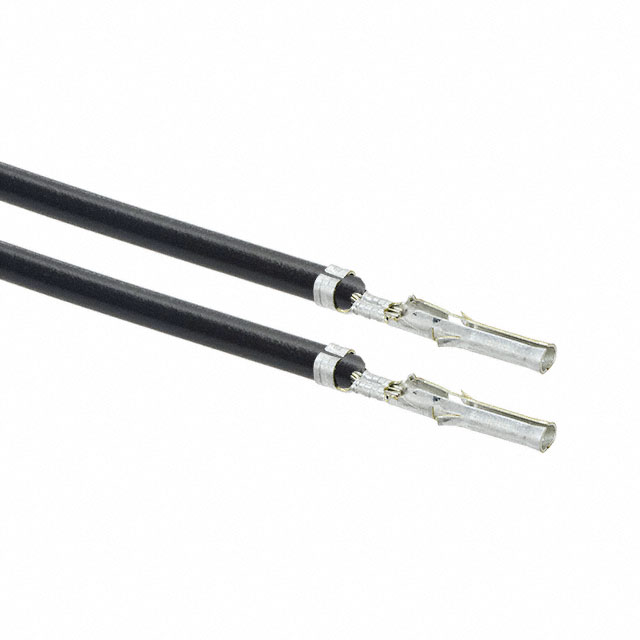

Black 18 AWG Jumper Lead Socket to Socket Tin 4.00" (101.60mm)

Technical documentation and resources

Specification	0002061101-04-B9-D	0002061101 Series

Color	Black	Brown, Black, Red, White, Blue, Violet, Yellow, Slate, Green
Contact End	Socket to Socket	Socket to Socket, Socket to Cable (Round)
Contact Finish	Tin	Tin
Contact Finish Thickness	0.51 µm	0.51 µm
Contact Finish Thickness	20 µin	20 µin
Length	-	76.2 - 304.8 mm
Length	-	6 - 8 in
Length [x]	101.6 mm	101.6 - 279.4 mm
Length [x]	4 "	3 - 12 in
Number of Conductors	1	1
Number of Rows	1	1
Wire Gauge	18 AWG	18 - 22 AWG

Part	Number of Rows	Number of Conductors	Length [x]	Length	Contact Finish	Contact End	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Length [x]	Length
Molex 0002061101-03-N2-D	1	1	3 in	76.2 mm	Tin	Socket to Socket	Brown	0.51 µm	20 µin	22 AWG
Molex 0002061101-05-B0	1	1	5 in		Tin	Socket to Cable (Round)	Black	0.51 µm	20 µin	20 AWG	127 mm
Molex 0002061101-03-R2	1	1	3 in	76.2 mm	Tin	Socket to Cable (Round)	Red	0.51 µm	20 µin	22 AWG
Molex 0002061101-08-W0-D	1	1		203.2 mm	Tin	Socket to Socket	White	0.51 µm	20 µin	20 AWG		8 in
Molex 0002061101-10-L0-D	1	1	10 in	254 mm	Tin	Socket to Socket	Blue	0.51 µm	20 µin	20 AWG
Molex 0002061101-04-V2	1	1	4 "		Tin	Socket to Cable (Round)	Violet	0.51 µm	20 µin	22 AWG	101.6 mm
Molex 0002061101-03-Y0-D	1	1	3 in	76.2 mm	Tin	Socket to Socket	Yellow	0.51 µm	20 µin	20 AWG
Molex 0002061101-04-B9-D	1	1	4 "		Tin	Socket to Socket	Black	0.51 µm	20 µin	18 AWG	101.6 mm
Molex 0002061101-06-B2	1	1		152.4 mm	Tin	Socket to Cable (Round)	Black	0.51 µm	20 µin	22 AWG		6 in
Molex 0002061101-02-R9	1	1			Tin	Socket to Cable (Round)	Red	0.51 µm	20 µin	18 AWG
