MS3124E22-21P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124E22-21P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124E22-21P | MS3124E22 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 21 | 21 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 21 | 21 |
| Shell Size - Insert [Min] | 22 | 22 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VAC | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 139.99 | |
| 10 | $ 128.46 | |||
| 25 | $ 123.52 | |||
| 50 | $ 119.40 | |||
MS3124E22 Series
RECEPT
| Part | Current Rating (Amps) | Mounting Feature | Ingress Protection | Contact Material | Fastening Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Termination | Voltage Rating | Grade | Color | Shielding | Primary Material | Insert Material | Connector Type | Orientation | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Number of Positions | Applications | Qualification | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124E22-41S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-41P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-21P(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-21S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-55S(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-55P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E22-21P | 13 A | Bulkhead - Front Side Nut | Environment Resistant | Copper Alloy | Bayonet Lock | Aluminum | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Crimp | 1000 VAC | Military | Olive Drab | Unshielded | Metal | Neoprene | Male Pins, Receptacle | N | 21 | 22 | 21 | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold |
Amphenol Industrial Operations MS3124E22-21S(LC) |
Description
General part information
MS3124E22 Series

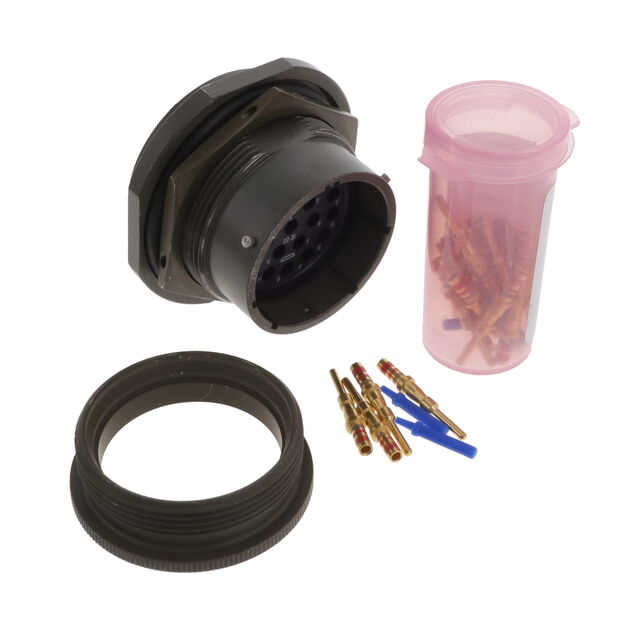

21 Position Circular Connector Receptacle, Male Pins Crimp
