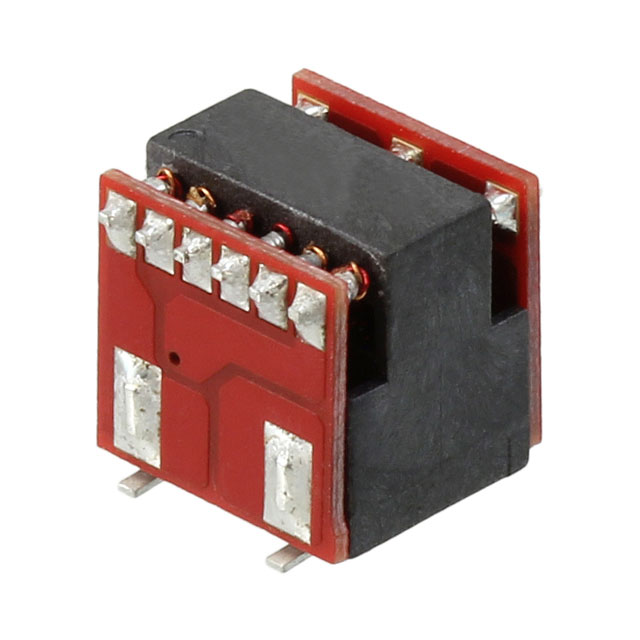

MTU2D0512MC-R

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 2W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 2W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 4.5V - 5.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-12V 2W

Part	Applications	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)
Murata Power Solutions Inc. MTU2D0512MC-R	ITE (Commercial)	6-SMD Module, 5 Leads	2	85 °C	-40 °C	12 V	Surface Mount	4.5 V	1000 V	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	Isolated Module	83 mA	83 mA	-12 V	5.5 V	85 %	2 W
Murata Power Solutions Inc. MTU2D0505MC	ITE (Commercial)	6-SMD Module	2	85 °C	-40 °C	5 V	Surface Mount	4.5 V	1000 V	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	Isolated Module			-5 V	5.5 V		2 W
