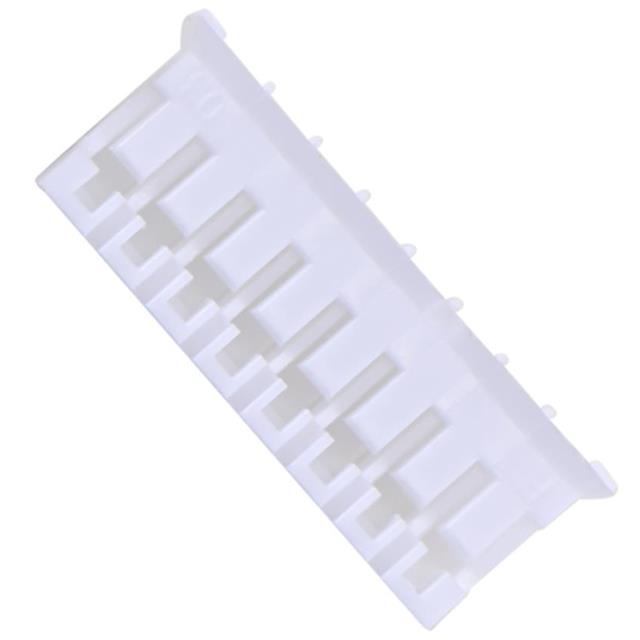

A-WBH-K001EG-04CB01

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 2.00MM,

Search across all available documentation for this part.

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 2.00MM,

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Insulation Material	Contact Termination	Connector Type	Pitch [x]	Pitch [x]	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Mounting Type
Assmann WSW Components A-WBH-K001EG-15CB01	1	Polyamide (PA66) Nylon 6/6	Crimp	Plug	0.079 in	2 mm	Locking Ramp	15	-25 °C	85 °C	Female Socket	White	Free Hanging (In-Line)
Assmann WSW Components A-WBH-K001EG-11CB01	1	Polyamide (PA66) Nylon 6/6	Crimp	Plug	0.079 in	2 mm	Locking Ramp	11	-25 °C	85 °C	Female Socket	White	Free Hanging (In-Line)
Assmann WSW Components A-WBH-K001EG-06CB01	1	Polyamide (PA66) Nylon 6/6	Crimp	Plug	0.079 in	2 mm	Locking Ramp	6	-25 °C	85 °C	Female Socket	White	Free Hanging (In-Line)
Assmann WSW Components A-WBH-K001EG-08CB01	1	Polyamide (PA66) Nylon 6/6	Crimp	Plug	0.079 in	2 mm	Locking Ramp	8	-25 °C	85 °C	Female Socket	White	Free Hanging (In-Line)
Assmann WSW Components A-WBH-K001EG-04CB01	1	Polyamide (PA66) Nylon 6/6	Crimp	Plug	0.079 in	2 mm	Locking Ramp	4	-25 °C	85 °C	Female Socket	White	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10000	$ 0.01

General part information

4 Rectangular Connectors - Housings Plug White 0.079" (2.00mm)
