S29VS128RABBHI000
ObsoleteInfineon Technologies
NOR FLASH 128MB 1.8V 108MHZ PARA
Deep-Dive with AI
Search across all available documentation for this part.
S29VS128RABBHI000
ObsoleteInfineon Technologies
NOR FLASH 128MB 1.8V 108MHZ PARA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S29VS128RABBHI000 |
|---|---|
| Access Time | 80 ns |
| Clock Frequency | 108 MHz |
| Memory Format | FLASH |
| Memory Interface | Parallel |
| Memory Organization | 8M x 16 |
| Memory Size | 128 Mb |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

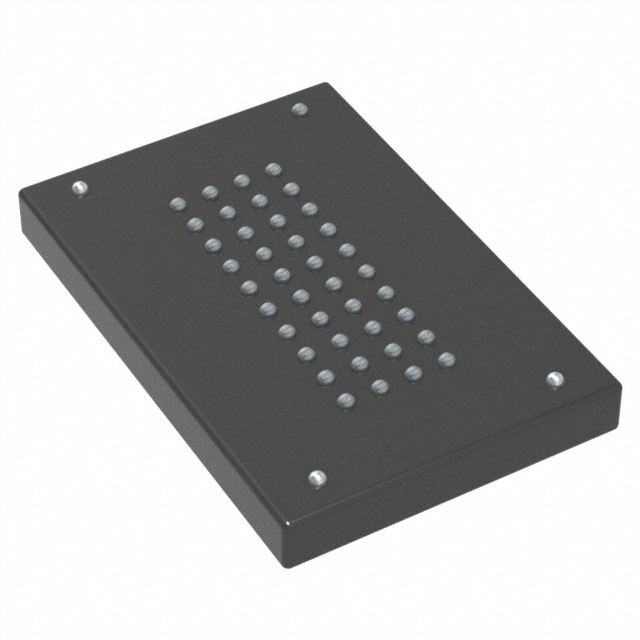

| Package / Case | 44-VFBGA |
| Supplier Device Package | 44-FBGA (7.5x5) |
| Technology | FLASH - NOR |
| Voltage - Supply [Max] | 1.95 V |
| Voltage - Supply [Min] | 1.7 V |
| Write Cycle Time - Word, Page | 60 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 13.15 | |
| 50 | $ 13.15 | |||
Description
General part information
S29VS128 Series
FLASH - NOR Memory IC 128Mbit Parallel 108 MHz 80 ns 44-FBGA (7.5x5)
Documents
Technical documentation and resources
No documents available
