2905660
ActivePhoenix Contact

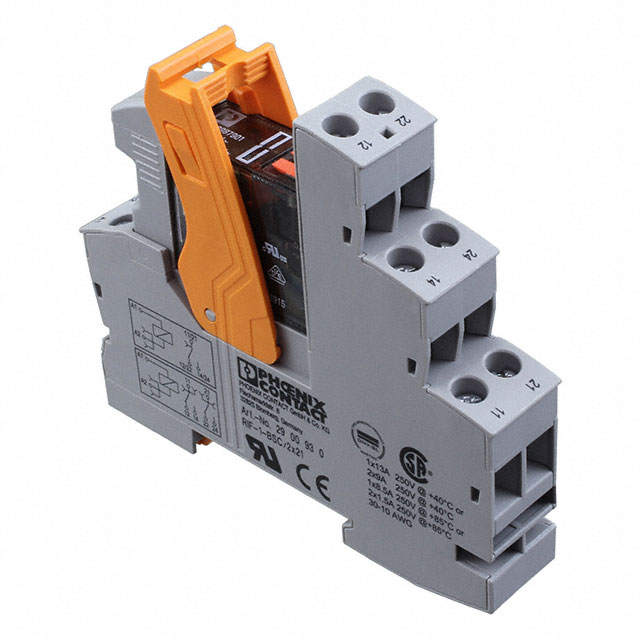

RELAY GEN PURPOSE SPDT 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2905660
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 8A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2905660 | 29056 Series |
|---|---|---|
| Approval Agency | CSA | CSA |
| Coil Current | 18 mA | 4.5 - 18 mA |
| Coil Resistance | 1.33 kOhms | 1.33 - 51.11 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 230 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A | 5 - 11 A |
| Features | Socket Included, Diode, Lighted Indicator | Socket Included, Diode, Lighted Indicator, Varistor |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 9 ms | 9 - 12 ms |
| Operating Temperature [Max] | 60 °C | 45 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29056 Series
RELAY GEN PURPOSE SPDT 11A 24V
| Part | Coil Type | Coil Current | Coil Voltage | Coil Resistance | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Approval Agency | Contact Material | Mounting Type | Relay Type | Release Time | Operate Time | Contact Form | Switching Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2905659 | Non Latching | 18 mA | 24 VDC | 1.33 kOhms | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | Screw Terminal | CSA | Silver Nickel (AgNi) | DIN Rail | General Purpose | 10 ms | 9 ms | SPDT (1 Form C) | 250 VAC, 250 VDC | 11 A |
Phoenix Contact 2905662 | Non Latching | 4.5 mA | 230 VAC | 51.11 kOhms | Lighted Indicator, Socket Included, Varistor | -40 °C | 45 °C | Screw Terminal | CSA | Silver Nickel (AgNi) | DIN Rail | General Purpose | 20 ms | 12 ms | DPDT (2 Form C) | 250 VAC, 250 VDC | 5 A |
Phoenix Contact 2905660 | Non Latching | 18 mA | 24 VDC | 1.33 kOhms | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | Screw Terminal | CSA | Silver Nickel (AgNi) | DIN Rail | General Purpose | 10 ms | 9 ms | SPDT (1 Form C) | 250 VAC, 250 VDC | 8 A |
Phoenix Contact 2905661 | Non Latching | 4.5 mA | 230 VAC | 51.11 kOhms | Lighted Indicator, Socket Included, Varistor | -40 °C | 50 °C | Screw Terminal | CSA | Silver Nickel (AgNi) | DIN Rail | General Purpose | 20 ms | 12 ms | SPDT (1 Form C) | 250 VAC, 250 VDC | 8.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.74 | |
Description
General part information
29056 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
