Phoenix Contact

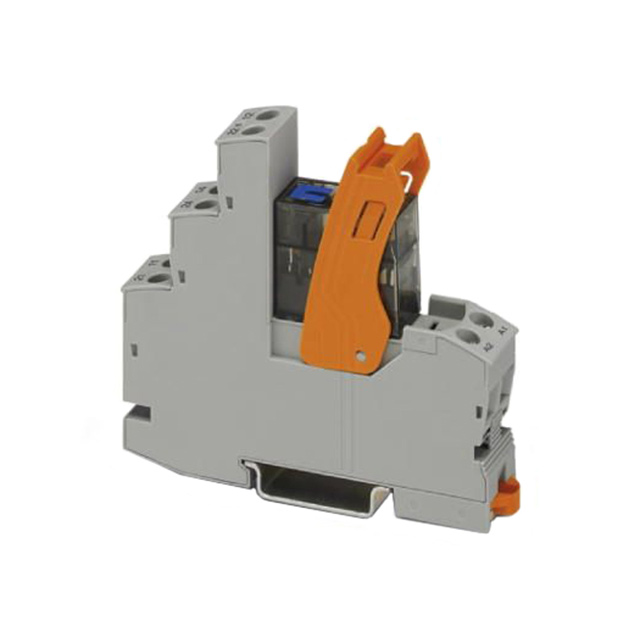

RELAY GEN PURPOSE SPDT 11A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 11A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2905659	29056 Series

Approval Agency	CSA	CSA
Coil Current	18 mA	4.5 - 18 mA
Coil Resistance	1.33 kOhms	1.33 - 51.11 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 230 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	11 A	5 - 11 A
Features	Socket Included, Diode, Lighted Indicator	Socket Included, Diode, Lighted Indicator, Varistor
Mounting Type	DIN Rail	DIN Rail
Operate Time	9 ms	9 - 12 ms
Operating Temperature [Max]	60 °C	45 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE SPDT 11A 24V

Part	Coil Type	Coil Current	Coil Voltage	Coil Resistance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Approval Agency	Contact Material	Mounting Type	Relay Type	Release Time	Operate Time	Contact Form	Switching Voltage	Contact Rating (Current)
Phoenix Contact 2905659	Non Latching	18 mA	24 VDC	1.33 kOhms	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	Screw Terminal	CSA	Silver Nickel (AgNi)	DIN Rail	General Purpose	10 ms	9 ms	SPDT (1 Form C)	250 VAC, 250 VDC	11 A
Phoenix Contact 2905662	Non Latching	4.5 mA	230 VAC	51.11 kOhms	Lighted Indicator, Socket Included, Varistor	-40 °C	45 °C	Screw Terminal	CSA	Silver Nickel (AgNi)	DIN Rail	General Purpose	20 ms	12 ms	DPDT (2 Form C)	250 VAC, 250 VDC	5 A
Phoenix Contact 2905660	Non Latching	18 mA	24 VDC	1.33 kOhms	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	Screw Terminal	CSA	Silver Nickel (AgNi)	DIN Rail	General Purpose	10 ms	9 ms	SPDT (1 Form C)	250 VAC, 250 VDC	8 A
Phoenix Contact 2905661	Non Latching	4.5 mA	230 VAC	51.11 kOhms	Lighted Indicator, Socket Included, Varistor	-40 °C	50 °C	Screw Terminal	CSA	Silver Nickel (AgNi)	DIN Rail	General Purpose	20 ms	12 ms	SPDT (1 Form C)	250 VAC, 250 VDC	8.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
