ZL30795LFG7
Active2-CH IEEE1588/SYNCE NETWORK SYNCHRONIZER
Deep-Dive with AI
Search across all available documentation for this part.
ZL30795LFG7
Active2-CH IEEE1588/SYNCE NETWORK SYNCHRONIZER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZL30795LFG7 |
|---|---|
| Differential - Input:Output [custom] | True |
| Differential - Input:Output [custom] | True |
| Frequency - Max [Max] | 1.045 GHz |
| Input | CMOS |
| Main Purpose | SONET/SDH, Wireless Base Stations, Ethernet |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

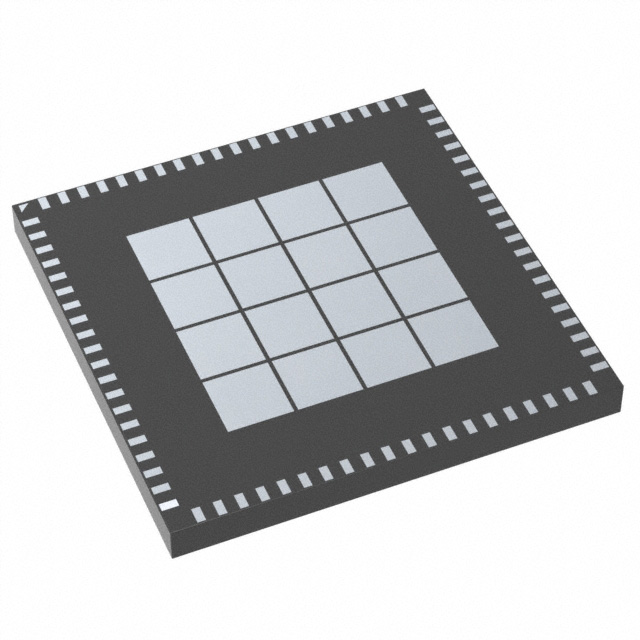

| Package / Case | 80-VFLGA |
| PLL | True |
| Ratio - Input:Output [custom] | 10 |
| Ratio - Input:Output [custom] | 5 |
| Supplier Device Package | 80-LGA (11x11) |
| Voltage - Supply | 1.8 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | TRAY | 1 | $ 72.28 | |
| 25 | $ 60.25 | |||
| 100 | $ 54.76 | |||
| 1000 | $ 52.89 | |||
| 5000 | $ 52.29 | |||
ZL30795 Series
2-Ch IEEE1588/SyncE Network Synchronizer
| Part | Mounting Type | Voltage - Supply | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Input | Number of Circuits | Frequency - Max [Max] | Package / Case | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Main Purpose | PLL | Differential - Input:Output [custom] | Differential - Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL30795LFG7 | Surface Mount | 1.8 V, 3.3 V | 80-LGA (11x11) | 85 °C | -40 °C | CMOS | 2 | 1.045 GHz | 80-VFLGA | 10 | 5 | Ethernet, SONET/SDH, Wireless Base Stations |
Description
General part information
ZL30795 Series
The ZL30795 offers two independent timing channels of a combined hardware and software platform including IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithms. Using Microsemi’s miTimePLL timing technology, this device offers new and improved features for 5G transport and wireless infrastructure equipment. This devices is ideal for timing card applications in systems that need to support 10G/40G and 100G Phys.
[**Click here for the list of supported IEEE 1588-2008 PTP Profiles and Equipment Clock Specifications**](https://www.microsemi.com/product-directory/network-synchronization/882-ieee-1588#ieee-1588-profiles)
Under the same family, the [ZL3066x](https://www.microchip.com/wwwproducts/en/ZL30663) and [ZL3069x](https://www.microchip.com/wwwproducts/en/ZL30693) offer one to three channels of Synchronous Ethernet (SyncE) packet clock synchronization for line card and timing card interface.
