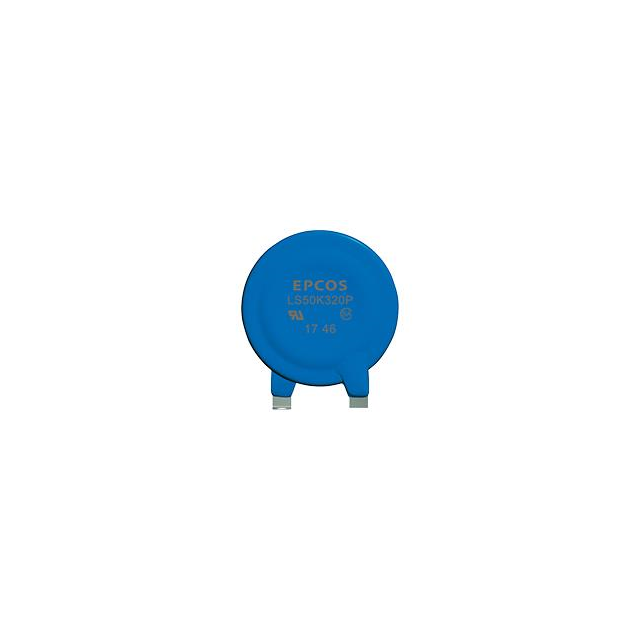

B72250L0251K100

Active

EPCOS - TDK Electronics

VARISTOR 390V 75KA DISC 57MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 390V 75KA DISC 57MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 16.30

General part information

390 V 75 kA Varistor Circuit Bolt Mount Disc 57mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 910V 75KA DISC 57MM

Part	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Package / Case	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Capacitance @ Frequency	Number of Circuits	Mounting Type	Current - Surge	Energy	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max) [Max]	Maximum AC Volts
EPCOS - TDK Electronics B72250L0551K100	745 V	819 V	Disc 57mm	910 V	550 V	2400 pF	1	Bolt Mount	75 kA	1820 J	85 °C	-40 °C	1.001 kV
EPCOS - TDK Electronics B72250L0461K100	615 V	675 V	Disc 57mm	750 V	460 V			Bolt Mount	75 kA	1650 J	85 °C	-25 °C	825 V
EPCOS - TDK Electronics B72250L0271K102	350 V	387 V	Disc 57mm	430 V	275 V	5500 pF	1	Bolt Mount	75 kA	860 J	85 °C	-40 °C	473 V
EPCOS - TDK Electronics B72250L0421K102	560 V	612 V	Disc 57mm	680 V	420 V	3300 pF		Bolt Mount	75 kA	1500 J	85 °C	-25 °C	748 V
EPCOS - TDK Electronics B72250L0441K100	585 V	643.5 V	Disc 57mm	715 V	440 V	3000 pF		Bolt Mount	75 kA	1580 J	85 °C	-25 °C	786.5 V
EPCOS - TDK Electronics B72250L0381K102	505 V	558 V	Disc 57mm	620 V		3500 pF	1	Bolt Mount	75 kA	1200 J	85 °C	-40 °C		385 V
EPCOS - TDK Electronics B72250L0441K102	585 V	643.5 V	Disc 57mm	715 V	440 V	3000 pF	1	Bolt Mount	75 kA	1580 J	85 °C	-40 °C	786.5 V
EPCOS - TDK Electronics B72250L0251K100	320 V	351 V	Disc 57mm	390 V	250 V	5600 pF		Bolt Mount	75 kA	800 J	85 °C	-25 °C	429 V
EPCOS - TDK Electronics B72250L0321K102	420 V	459 V	Disc 57mm	510 V	320 V	4300 pF	1	Bolt Mount	75 kA	1000 J	85 °C	-40 °C	561 V
EPCOS - TDK Electronics B72250L0271K100	350 V	387 V	Disc 57mm	430 V	275 V	5500 pF	1	Bolt Mount	75 kA	860 J	85 °C	-40 °C	473 V
