M0420SD-204SDAR1-3

Active

Newhaven Display Intl

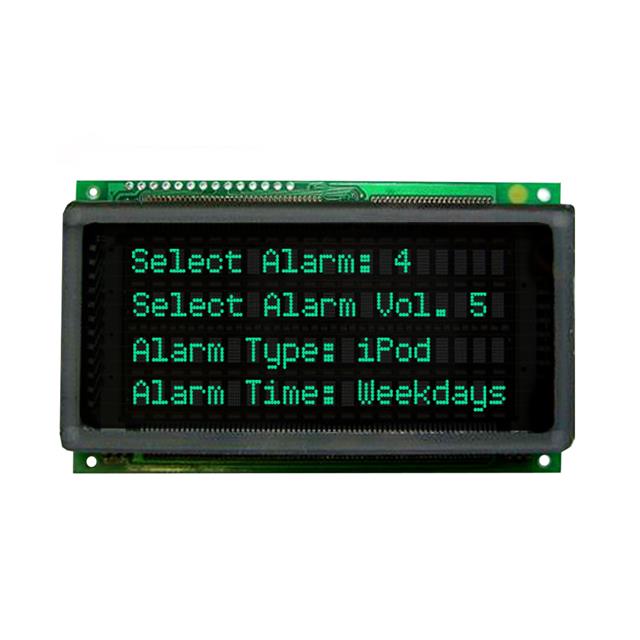

MODULE VF CHAR 4X20 4.84MM

Search across all available documentation for this part.

Active

Newhaven Display Intl

MODULE VF CHAR 4X20 4.84MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 68.49

General part information

Vacuum Fluorescent Display (VFD) 20 x 4 Character 5V Parallel/Serial 100.00mm x 60.00mm x 20.60mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

MODULE VF CHAR 4X20 4.87MM

Part	Viewing Area [x]	Viewing Area [y]	Display Format [y]	Display Format [x]	Format [x]	Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Character Size [y]	Character Size [z]	Display Type	Controller Type	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]
Newhaven Display Intl M0420SD-204MDAR1-C	89.52 mm	33.07 mm	4	20	5 Dots	7	85 °C	-40 °C	3.07 mm	4.87 mm	Character	PT6314	150 mm	26.5 mm	64 mm	Parallel/Serial
Newhaven Display Intl M0240SD-402MDAR1-3	134.75 mm	11.5 mm	2	40	5 Dots	8 Dots	70 °C	-20 C	2.1 mm	5.34 mm	Character		182 mm	17.6 mm	33.5 mm	Parallel	4.5 V	5.5 V
Newhaven Display Intl M0420SD-204SDAR1-3	73.6 mm	30.96 mm	4	20	5 Dots	8 Dots	85 °C	-40 °C	2.35 mm	4.84 mm	Character	PT6314	100 mm	20.6 mm	60 mm	Parallel/Serial
