Q-010330001001M

Active

Amphenol Custom Cable

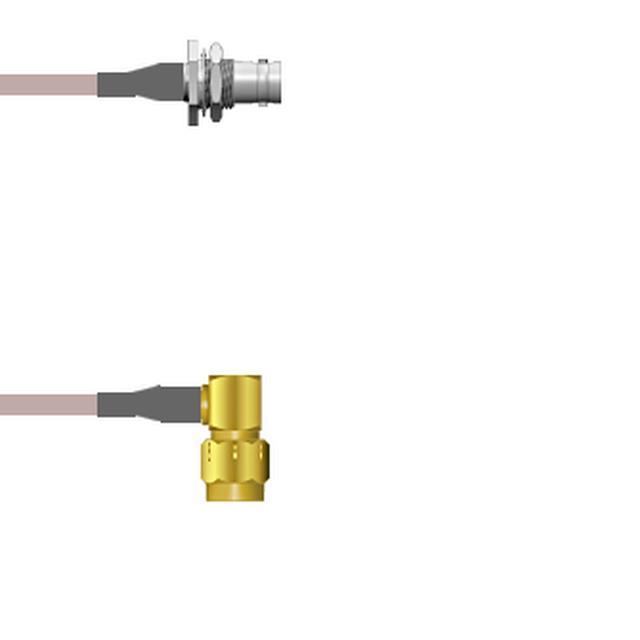

CBL ASSY BNC-SMA JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-010330001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-010330001001M	Q-010330 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	SMA Plug, Right Angle	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	1 m	1 - 1200 mm
Length	3.3 ft	3.3 - 9.8 ft
Length	39.4 in	3 - 118.1 "
Length	-	457.2 mm
Length	-	250 - 457.2 mm
Length	-	9.843 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMA	BNC to SMA

Q-010330 Series

CBL ASSY BNC-SMA JACK-PLG 29.53"

Part	2nd Connector Mounting Type	1st Connector Mounting Feature	Features	Color	1st Connector Mounting Type	Style	Frequency - Max [Max]	Overall Impedance	2nd Contact Gender	1st Contact Gender	1st Connector	Cable Type	Length	Length	2nd Connector	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-010330001.75M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	29.53 "	750 mm	SMA Plug, Right Angle
Amphenol Custom Cable Q-010330001060i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	5 '	1.5 m	SMA Plug, Right Angle	5 ft
Amphenol Custom Cable Q-010330001018i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178			SMA Plug, Right Angle		457.2 mm	457.2 mm
Amphenol Custom Cable Q-010330001.25M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178			SMA Plug, Right Angle			250 mm	9.843 "
Amphenol Custom Cable Q-010330001072i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	72 in	1.8 m	SMA Plug, Right Angle	6 ft
Amphenol Custom Cable Q-010330001036i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	36 in	91.44 cm	SMA Plug, Right Angle
Amphenol Custom Cable Q-0103300010.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	19.69 "	50 cm	SMA Plug, Right Angle
Amphenol Custom Cable Q-010330001048i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	48 in	1200 mm	SMA Plug, Right Angle	4 ft
Amphenol Custom Cable Q-010330001003i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	3 in	76.2 mm	SMA Plug, Right Angle
Amphenol Custom Cable Q-010330001001M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	Copper	Panel Mount	BNC to SMA	4 GHz	50 Ohms	Male	Female	BNC Jack	RG-178	39.4 in	1 m	SMA Plug, Right Angle	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.52
		25	$ 95.61
		50	$ 93.70
		100	$ 91.79
		250	$ 89.88

Description

General part information

Q-010330 Series

Cable Assembly Coaxial BNC to SMA RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
