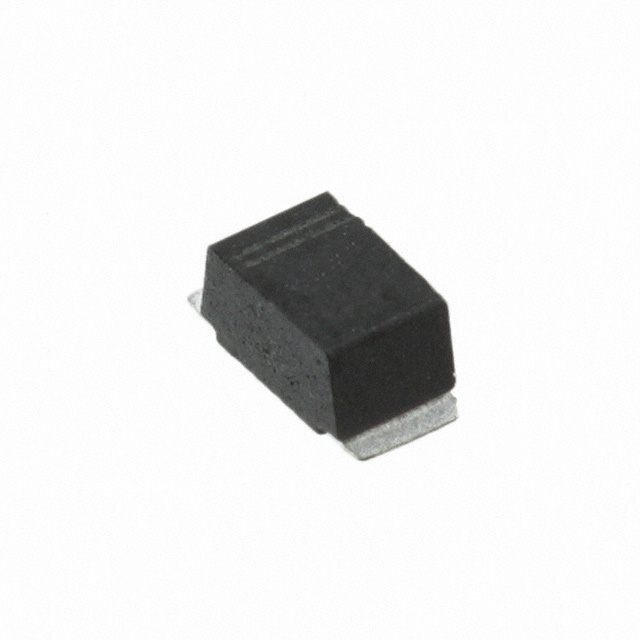

CD1607-B120LLF

Active

Bourns Inc.

DIODE SCHOTTKY 20V 1A 2MINISMA

Search across all available documentation for this part.

Active

Bourns Inc.

DIODE SCHOTTKY 20V 1A 2MINISMA

Technical Specifications

Parameters and characteristics for this part

Specification	CD1607-B120LLF

Capacitance @ Vr, F	100 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123T
Speed	200 mA, 500 ns
Supplier Device Package	2-Mini-SMA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	380 mV

Part	Technology	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type
Bourns Inc. CD1607-B120LF	Schottky	1 A	2-Mini-SMA	SOD-123T	500 µA	-55 °C	125 °C	20 V	110 pF	200 mA 500 ns	500 mV	Surface Mount
Bourns Inc. CD1607-B120LLF	Schottky	1 A	2-Mini-SMA	SOD-123T	1 mA	-55 °C	125 °C	20 V	100 pF	200 mA 500 ns	380 mV	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 20 V 1A Surface Mount 2-Mini-SMA
