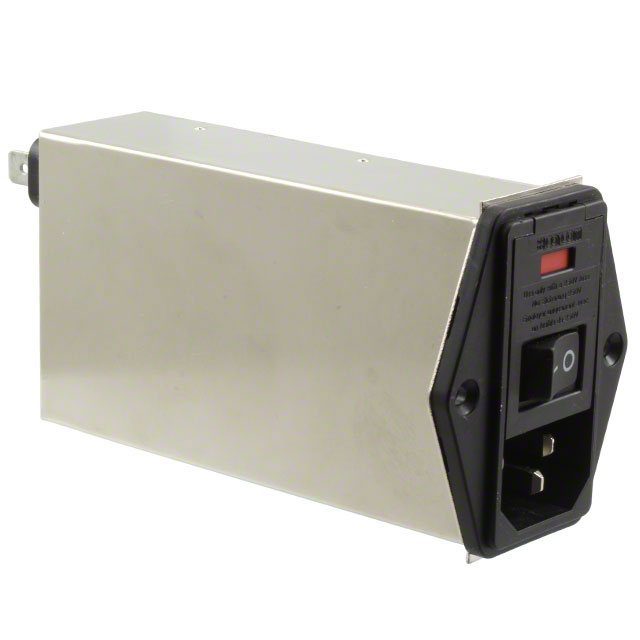

PE0S0DL6C

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PE0S0DL6C

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.21 mm
Panel Cutout Dimensions [y]	55.91 mm
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Accomodates a Fuse	Current Rating - Filter	Fuse Holder, Drawer	Approval Agency	Termination	Termination	Termination	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Current Rating - Appliance Inlet	Switch Features	Voltage Rating - Appliance Inlet	Connector Style	Mounting Type
TE Connectivity Corcom Filters PE0S0DL6C		6 A	Fuse Holder, Twin Fused	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	Receptacle, Male Blades - Module	29.21 mm	55.91 mm	Filtered (EMI, RFI) - Commercial	6 A	Switch On-Off	120 VAC	IEC 320-C14	Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
