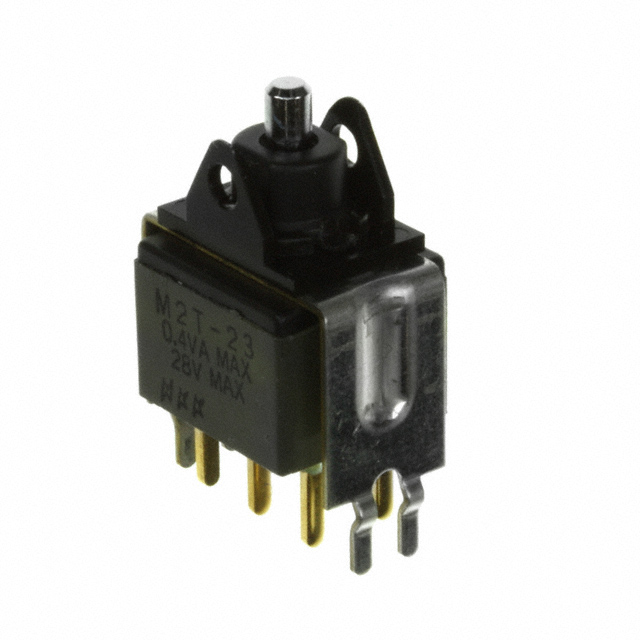

M2T23TXG13

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage Rating - DC	Voltage Rating - AC	Electrical Life	Actuator Marking	Termination Style	Switch Function	Color - Actuator/Cap	Mounting Type	Circuit	Current Rating (Amps)	Actuator Type	Features	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches M2T23TXW13-FC	CSA UL	30 V	125 V	25000 Steps	No Marking	PC Pin	On-Off-On	Red	Through Hole	DPDT	3 A 6 A	Concave (Standard V)	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXW30	CSA UL	30 V	125 V	25000 Steps	Varies by Cap	PC Pin	On-Off-On		Through Hole Right Angle	DPDT	3 A 6 A	Actuator Arm Cap Required	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXG13	CSA UL	28 V	28 V	50000 Cycles	Varies by Cap	PC Pin	On-Off-On		Through Hole	DPDT	0.4 VA	Actuator Arm Cap Required	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXG13-GF	CSA UL	28 V	28 V	50000 Cycles	No Marking	PC Pin	On-Off-On	Green	Through Hole	DPDT	0.4 VA	Paddle	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXW13	CSA UL	30 V	125 V	25000 Steps	Varies by Cap	PC Pin	On-Off-On		Through Hole	DPDT	3 A 6 A	Actuator Arm Cap Required	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXW30-FA	CSA UL	30 V	125 V	25000 Steps	No Marking	PC Pin	On-Off-On	Black	Through Hole Right Angle	DPDT	3 A 6 A	Concave (Standard V)	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXG13-EG	CSA UL	28 V	28 V	50000 Cycles	No Marking	PC Pin	On-Off-On	Blue	Through Hole	DPDT	0.4 VA	Paddle	Process Sealed	-30 ░C	85 °C
NKK Switches M2T23TXG13-DA	CSA UL	28 V	28 V	50000 Cycles	No Marking	PC Pin	On-Off-On	Black	Through Hole	DPDT	0.4 VA	Concave (Standard V)	Process Sealed	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
