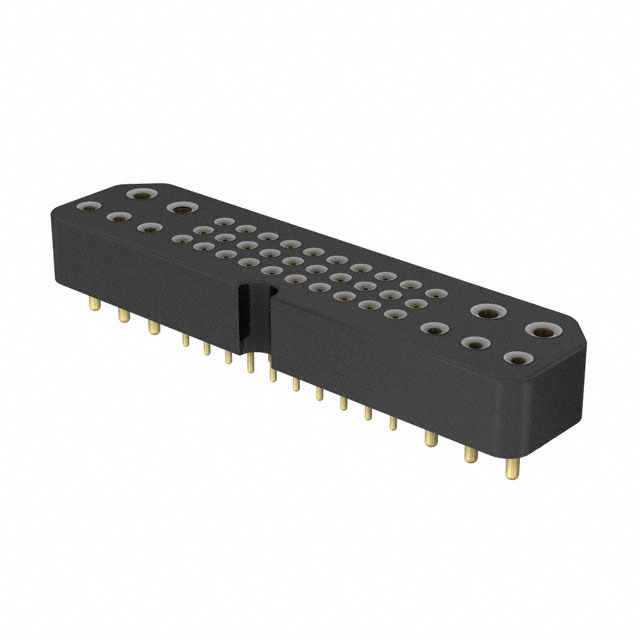

809-43-040-10-001000
ActiveMill-Max Manufacturing Corp.
CONN RCPT 40POS GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
809-43-040-10-001000
ActiveMill-Max Manufacturing Corp.
CONN RCPT 40POS GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 809-43-040-10-001000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Mated Stacking Heights | 10.54 mm |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 30 |
| Number of Positions [custom] | 10 |
| Number of Positions Loaded | All |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.67 | |
| 10 | $ 11.85 | |||
| 30 | $ 11.46 | |||
Description
General part information
809-43 Series
40 (30 + 10 Power) Position Receptacle Connector Through Hole Gold
