850-40-001-20-001000

Active

Mill-Max Manufacturing Corp.

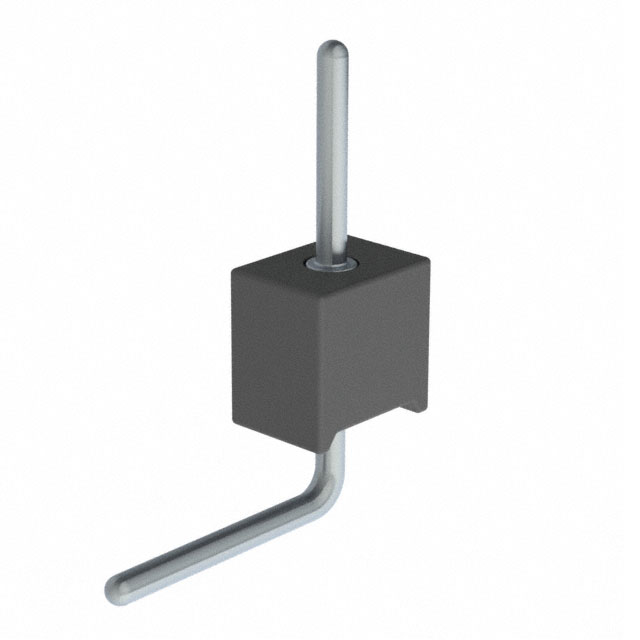

CONN HEADER R/A 1POS

Deep-Dive with AI

Search across all available documentation for this part.

850-40-001-20-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER R/A 1POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	850-40-001-20-001000

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Shrouding	Unshrouded
Termination	Solder

850-40 Series

...

Part	Number of Positions Loaded	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Shape	Contact Type	Fastening Type	Connector Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color
Mill-Max Manufacturing Corp. 850-40-001-20-001000	All	1	Black	0.087 "	2.2 mm	0.118 in	3 mm	Polyamide (PA46) Nylon 4/6	Tin	1	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Through Hole Right Angle	Unshrouded	3 mm	0.118 in
Mill-Max Manufacturing Corp. 850-40-020-30-002000	All	1	Black	0.087 "	2.2 mm			Polyamide (PA46) Nylon 4/6	Tin	20	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Surface Mount	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-022-20-001000	All	1	Black	0.087 "	2.2 mm	0.118 in	3 mm	Polyamide (PA46) Nylon 4/6	Tin	22 positions	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Through Hole Right Angle	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-020-10-003000		1								20			Solder		Solder Cup		Header				Through Hole						Tin	200 Áin	5.08 Ám	0.05 in	1.27 mm	Black
Mill-Max Manufacturing Corp. 850-40-025-20-001000	All	1	Black	0.087 "	2.2 mm	0.118 in	3 mm	Polyamide (PA46) Nylon 4/6	Tin		200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Through Hole Right Angle	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-012-10-003000		1								12			Solder		Solder Cup		Header				Through Hole						Tin	200 Áin	5.08 Ám	0.05 in	1.27 mm	Black
Mill-Max Manufacturing Corp. 850-40-029-30-001000	All	1	Black	0.087 "	2.2 mm			Polyamide (PA46) Nylon 4/6	Tin	29	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Surface Mount	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-046-30-001000	All	1	Black	0.087 "	2.2 mm			Polyamide (PA46) Nylon 4/6	Tin	46	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Surface Mount	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-018-20-001000	All	1	Black	0.087 "	2.2 mm	0.118 in	3 mm	Polyamide (PA46) Nylon 4/6	Tin	18	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Through Hole Right Angle	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 850-40-048-20-001000	All	1	Black	0.087 "	2.2 mm	0.118 in	3 mm	Polyamide (PA46) Nylon 4/6	Tin	48	200 µin	5.08 µm	Solder	Circular	Male Pin	Push-Pull	Header	Brass Alloy	5.08 µm	200 µin	Through Hole Right Angle	Unshrouded	3 mm	0.118 in	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 9.58

Description

General part information

850-40 Series

Connector Header Through Hole, Right Angle 1 position

Documents

Technical documentation and resources

No documents available
