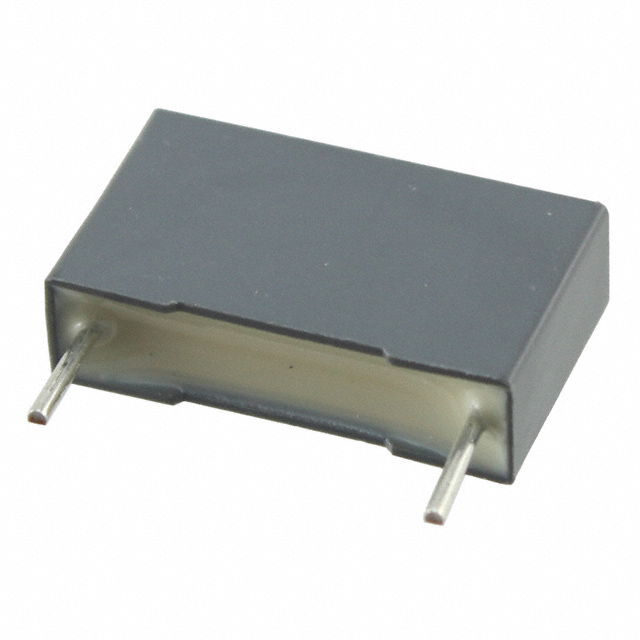

R73UI0470SE03J

Active

KEMET

CAP FILM 470PF 5% 2KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 470PF 5% 2KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R73UI0470SE03J

Applications	DC Filtering, DC Link, High Pulse, High Frequency, Automotive, DV/DT, Switching
Capacitance	470 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	500 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Termination	Voltage Rating - AC	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Capacitance
KEMET R73UI0470SE03J	AEC-Q200	18 mm	0.197 "	5 mm	0.709 in	Through Hole	15 mm	0.591 in	2 kV	2 kVDC	11 mm	0.433 in	5 %	Radial	PC Pins	500 V	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	105 ░C	-55 °C	Metallized Polypropylene (PP)	470 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 pF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Radial
