1072765

Active

SICK, Inc.

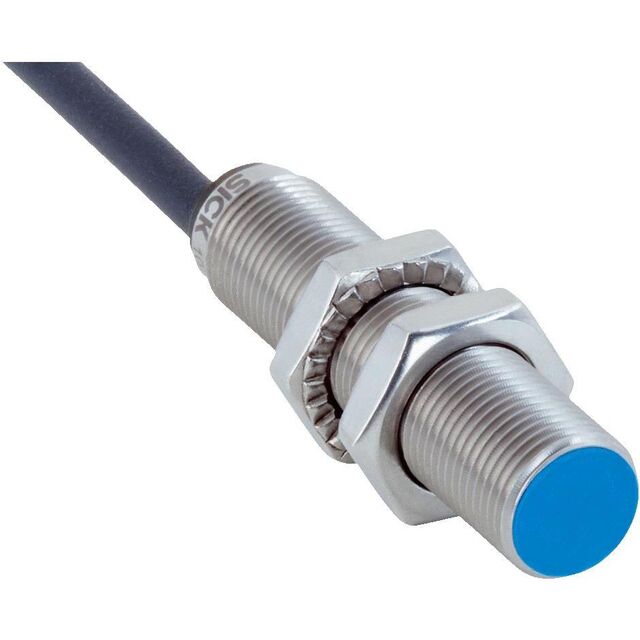

SENSOR PROX INDUCTIVE 4MM CYL 2M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072765

Active

SICK, Inc.

SENSOR PROX INDUCTIVE 4MM CYL 2M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072765

Indicator [custom]	No Indicator
Ingress Protection	IP68, IP69K
Material - Body	Plastic
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NC, 3-Wire
Package / Case	Cylinder, Threaded - M12
Response Frequency	2 kHz
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensor Type	Inductive
Shielding	Shielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IMB12 Series

Part	Sensor Type	Package / Case	Material - Body	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Response Frequency	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Indicator [custom]	Termination Style	Shielding
SICK, Inc. IMB12-04BPPVC0K	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	4-Wire PNP-NC/NO	2 kHz	4 mm	0.157 in	-40 °C	100 °C	LED	Connector	Shielded
SICK, Inc. 1072736	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NC 3-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	No Indicator	Connector	Shielded
SICK, Inc. 1074359	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	4-Wire NC/NO	2 kHz	4 mm	0.157 in	-40 °C	100 °C	LED	Connector	Shielded
SICK, Inc. 1074361	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	NPN-NC/NO 4-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	LED	Connector	Shielded
SICK, Inc. 1072744	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NC 3-Wire	2 kHz	8 mm	0.315 in	-40 °C	100 °C	No Indicator	Cable Leads	Shielded
SICK, Inc. 1072455	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NO 3-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	No Indicator	Cable Leads	Shielded
SICK, Inc. 1072739	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NC 3-Wire	2 kHz	8 mm	0.315 in	-40 °C	100 °C	No Indicator	Connector	Shielded
SICK, Inc. 1072748	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NC 3-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	No Indicator	Connector	Shielded
SICK, Inc. 1074364	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	NO 2-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	LED	Connector	Shielded
SICK, Inc. 1072765	Inductive	Cylinder Threaded - M12	Plastic	IP68 IP69K	30 VDC	10 VDC	PNP-NC 3-Wire	2 kHz	4 mm	0.157 in	-40 °C	100 °C	No Indicator	Cable Leads	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.65

Description

General part information

IMB12 Series

SENSOR PROX INDUCTIVE 4MM CYL 2M

Documents

Technical documentation and resources
