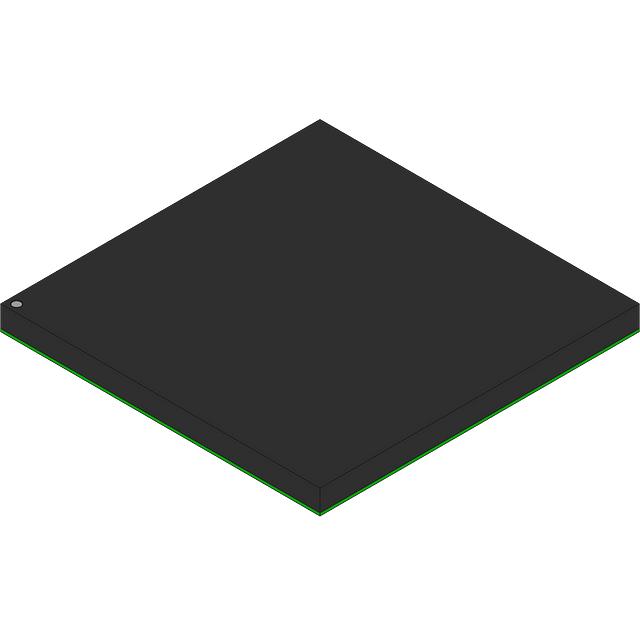

EP1S40B956C7

Active

Altera

IC FPGA 683 I/O 956BGA

Search across all available documentation for this part.

Active

Altera

IC FPGA 683 I/O 956BGA

Technical Specifications

Parameters and characteristics for this part

Part	Number of LABs/CLBs	Number of Logic Elements/Cells	Mounting Type	Total RAM Bits	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of I/O
Altera EP1S40F1020I6N	4125	41250	Surface Mount	3423744 bits	1020-BBGA	1.575 V	1.425 V	100 °C	-40 C	1020-FBGA (33x33)	773
Altera EP1S40F1508C7N			Surface Mount		1508-BBGA FCBGA	1.575 V	1.425 V	85 °C	0 °C	1508-FBGA (30x30)	822
Altera EP1S40F1020C7	4125	41250	Surface Mount	3423744 bits	1020-BBGA	1.575 V	1.425 V	85 °C	0 °C	1020-FBGA (33x33)	773
Altera EP1S40F780C7N	4125	41250	Surface Mount	3423744 bits	780-BBGA FCBGA	1.575 V	1.425 V	85 °C	0 °C	780-FBGA (29x29)	615
Altera EP1S40F780C6N	4125	41250	Surface Mount	3423744 bits	780-BBGA FCBGA	1.575 V	1.425 V	85 °C	0 °C	780-FBGA (29x29)	615
Altera EP1S40B956C7			Surface Mount		956-BBGA	1.575 V	1.425 V	85 °C	0 °C	956-BGA (40x40)	683
Altera EP1S40F1020C6	4125	41250	Surface Mount	3423744 bits	1020-BBGA	1.575 V	1.425 V	85 °C	0 °C	1020-FBGA (33x33)	773
Altera EP1S40F780C7N	4125	41250	Surface Mount	3423744 bits	780-BBGA FCBGA	1.575 V	1.425 V	85 °C	0 °C	780-FBGA (29x29)	615
Altera EP1S40F1020C5N	4125	41250	Surface Mount	3423744 bits	1020-BBGA	1.575 V	1.425 V	85 °C	0 °C	1020-FBGA (33x33)	773
Altera EP1S40F780C7	4125	41250	Surface Mount	3423744 bits	780-BBGA FCBGA	1.575 V	1.425 V	85 °C	0 °C	780-FBGA (29x29)	615

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1123.74

General part information

Stratix® Field Programmable Gate Array (FPGA) IC 683 956-BBGA

Technical documentation and resources

No documents available
