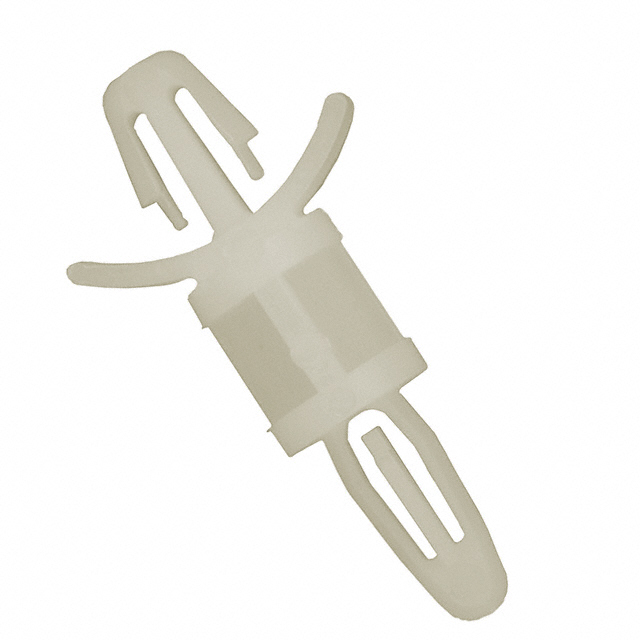

LCBS-6-01
ActiveEssentra Access Solutions
PCB SUPPORT, LOCKING, NYLON, 9.5 MM HEIGHT, 25 PACK
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-6-01
ActiveEssentra Access Solutions
PCB SUPPORT, LOCKING, NYLON, 9.5 MM HEIGHT, 25 PACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-6-01 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.106 in |
| Length - Overall [x] | 28.1 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LCBS-6 Series
Board Support Snap Lock / Snap Lock Nylon 0.375" (9.53mm) 3/8"
