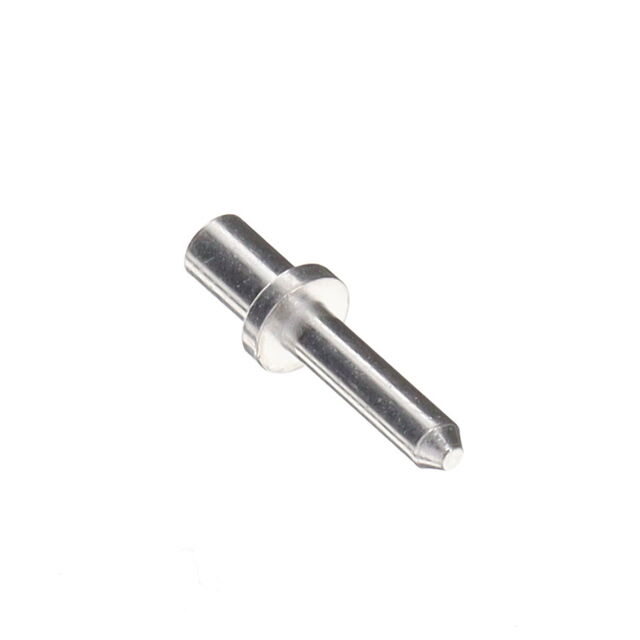

3159-2-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3159-2-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3159-2-00-80-00-00-08-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.092 in |
| Flange Diameter [diameter] | 2.34 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 4.78 mm |
| Length - Above Flange | 0.188 " |
| Length - Below Flange [x] | 0.094 in |
| Length - Below Flange [x] | 2.39 mm |
| Length - Overall [x] | 7.67 mm |
| Length - Overall [x] | 0.302 in |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.045 in |
| Pin Size - Above Flange [diameter] | 1.14 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.66 | |||
| 100 | $ 0.59 | |||
| 1000 | $ 0.43 | |||
| 5000 | $ 0.38 | |||
| 10000 | $ 0.36 | |||
Description
General part information
3159-2 Series
PC Pin Terminal Connector Through Hole Tin 0.045" (1.14mm) Dia
Documents
Technical documentation and resources
No documents available
