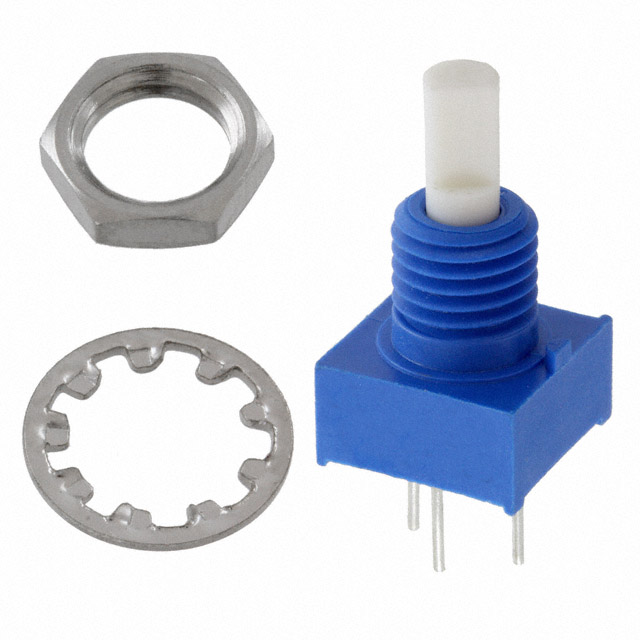

3310P-101-103L

Active

Bourns Inc.

POT 10K OHM 1/4W PLASTIC LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 10K OHM 1/4W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Number of Gangs	Tolerance	Adjustment Type	Bushing Thread	Rotation	Termination Style	Temperature Coefficient	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Actuator Type	Power (Watts)	Power (Watts)	Resistance (Ohms)	Actuator Length [x]	Actuator Length	Resistive Material	Features	Taper	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Length [z]	Actuator Length [z]	Mounting Type	Resistance (Ohms)
Bourns Inc. 3310P-102-104L	1	1	20 %	Top Adjustment	1/4-32	300 ░	PC Pins	1000 ppm/°C	9.53 mm	0.375 in	9.53 mm	0.375 "	Flatted	0.25 W	250 mW	100 kOhms	0.5 in	12.7 mm	Conductive Plastic	Sealed	Linear	0.125 in	3.18 mm
Bourns Inc. 3310P-025-104L	1	1	20 %	Top Adjustment		300 ░	PC Pins	1000 ppm/°C	9.53 mm	0.375 in	9.53 mm	0.375 "	Slotted	0.25 W	250 mW	100 kOhms			Conductive Plastic	Sealed	Linear	0.125 in	3.18 mm	0.22 in	5.59 mm	Through Hole
Bourns Inc. 3310P-101-103L	1	1	20 %	Top Adjustment	1/4-32	300 ░	PC Pins	1000 ppm/°C	9.53 mm	0.375 in	9.53 mm	0.375 "	Flatted	0.25 W	250 mW		0.5 in	12.7 mm	Conductive Plastic	Sealed	Linear	0.125 in	3.18 mm				10k
Bourns Inc. 3310P-001-105L	1	1	20 %	Top Adjustment	1/4-32	300 ░	PC Pins	1000 ppm/°C	9.53 mm	0.375 in	9.53 mm	0.375 "	Slotted	0.25 W	250 mW		0.5 in	12.7 mm	Conductive Plastic	Sealed	Linear	0.125 in	3.18 mm				1M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
