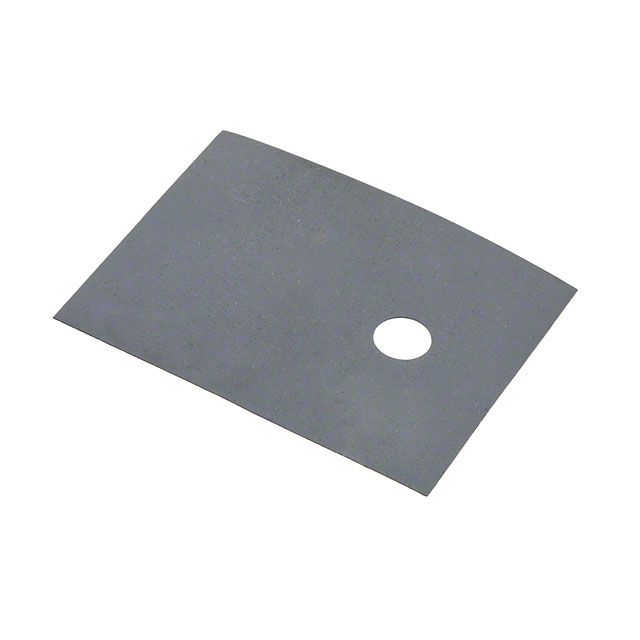

SPK4-0.006-00-104

Active

Bergquist

THERM PAD 25.4MMX19.05MM GRAY

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 25.4MMX19.05MM GRAY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 25.40mm x 19.05mm Rectangular

Technical documentation and resources

Part	Usage	Thermal Resistivity	Shape	Thickness	Thickness	Thermal Conductivity	Outline [x]	Outline [y]	Color	Material	Backing, Carrier	Shelf Life	Adhesive	Shelf Life Start
Bergquist SPK4-0.006-00-54	TO-220	0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	19.05 mm	12.7 mm	Gray	Silicone Rubber	Polyimide
Bergquist 2191342		0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	304.8 mm	292.1 mm	Gray	Silicone Rubber	Polyimide
Bergquist SPK4-0.006-00-70	Multi	0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	35.81 mm	20.57 mm	Gray	Silicone Rubber	Polyimide
Bergquist SPK4-0.006-AC-97	RH-10	0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	22.61 mm	20.45 mm	Gray	Silicone Rubber	Polyimide	6 Months	Adhesive - One Side
Bergquist SPK4-0.006-00-58	TO-220	0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	19.05 mm	12.7 mm	Gray	Silicone Rubber	Polyimide	12 Months		Date of Manufacture
Bergquist SPK4-0.006-00-104	TO-218, TO-220, TO-247	0.48 °C/W	Rectangular	0.152 mm	0.006 in	0.9 W/m-K	25.4 mm	19.05 mm	Gray	Silicone Rubber	Polyimide	12 Months
