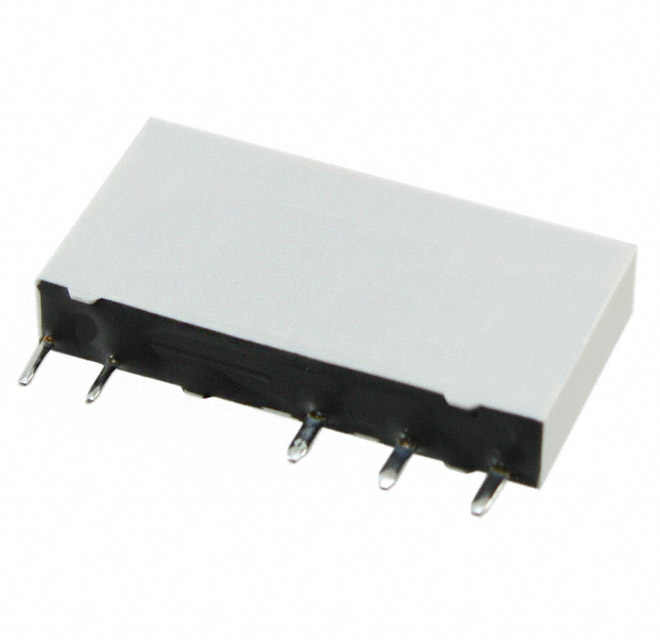

APF10260

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 6A 60V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 6A 60V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Coil Resistance	Coil Voltage	Contact Form	Operate Time	Relay Type	Mounting Type	Switching Voltage	Must Operate Voltage	Termination Style	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Must Release Voltage	Coil Type	Contact Material
Panasonic Electric Works APF10218	6 A	1.9 kOhms	18 VDC	SPST-NO (1 Form A)	8 ms	General Purpose	Through Hole	250 VAC	12.6 VDC	PC Pin	9.4 mA	85 °C	-40 °C	4 ms	0.9 VDC	Non Latching	Silver Nickel (AgNi)
Panasonic Electric Works APF10260	6 A	20.57 kOhms	60 VDC	SPST-NO (1 Form A)	8 ms	General Purpose	Through Hole	250 VAC	42 VDC	PC Pin	2.9 mA	85 °C	-40 °C	4 ms	3 VDC	Non Latching	Silver Nickel (AgNi)
Panasonic Electric Works APF10205	6 A	147 Ohms	5 VDC	SPST-NO (1 Form A)	8 ms	General Purpose	Through Hole	250 VAC	3.5 VDC	PC Pin	34 mA	85 °C	-40 °C	4 ms	0.25 VDC	Non Latching	Silver Nickel (AgNi)
Panasonic Electric Works APF10224	6 A	3.39 kOhms	24 VDC	SPST-NO (1 Form A)	8 ms	General Purpose	Through Hole	250 VAC	16.8 VDC	PC Pin	7.1 mA	85 °C	-40 °C	4 ms	1.2 VDC	Non Latching	Silver Nickel (AgNi)
Panasonic Electric Works APF10206	6 A	212 Ohms		SPST-NO (1 Form A)	8 ms	General Purpose	Through Hole	250 VAC	4.2 VDC	PC Pin	28.3 mA	85 °C	-40 °C	4 ms	0.3 VDC	Non Latching	Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 11.78

General part information

General Purpose Relay SPST-NO (1 Form A) 60VDC Coil Through Hole
