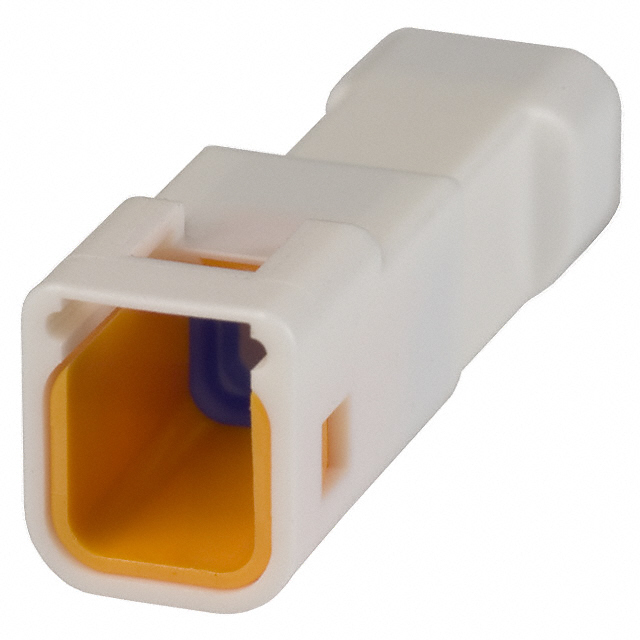

02T-JWPF-VSLE-S

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	02T-JWPF-VSLE-S

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	JIS C 0920 Grade Level 7
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

CONN PLUG HSG 2POS 2.00MM

Part	Number of Positions	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Note	Contact Type	Color	Connector Type	Mounting Type	Fastening Type	Number of Rows	Contact Termination	Features
JST Sales America Inc. 02T-JWPF-VSLE-S	2	Polybutylene Terephthalate (PBT)	85 °C	-55 °C	0.079 in	2 mm	Contacts Not Included	Male Pin	Natural	Plug	Free Hanging (In-Line)	Latch Holder	1	Crimp	JIS C 0920 Grade Level 7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Natural 0.079" (2.00mm)
