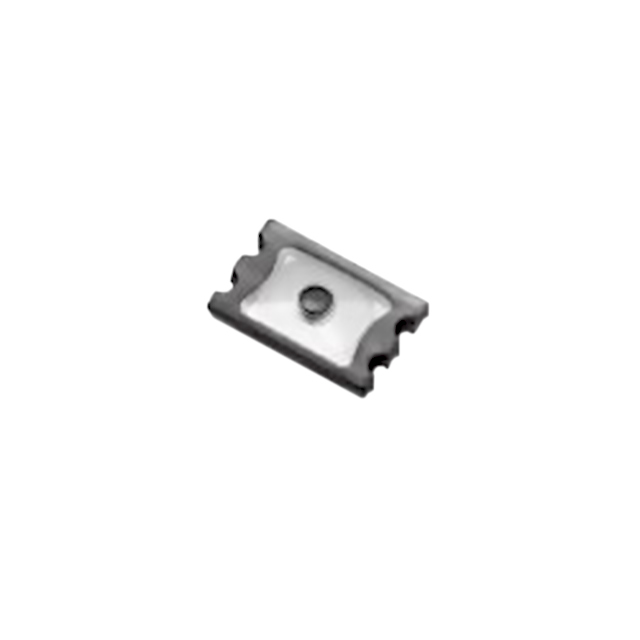

LS95C2D-T

Obsolete

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Obsolete

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LS95C2D-T

Actuator Height off PCB, Vertical [z]	0.55 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Outline [x]	2.8 mm
Outline [y]	1.75 mm
Switch Function	Off-Mom
Switch Travel	0.12 mm
Termination Style	SMD (SMT) Tab

SWITCH TACTILE SPST-NO 0.02A 12V

Part	Actuator Orientation	Illumination	Switch Function	Mounting Type	Contact Rating @ Voltage	Mechanical Life	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Circuit	Switch Travel
Citizen LS95C2D-T	Top Actuated	Non-Illuminated	Off-Mom	Surface Mount	0.02 A, 12 VDC	500000 Cycles	Standard	SMD (SMT) Tab	0.55 mm	1.75 mm	2.8 mm	SPST-NO	0.12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
