Q-2003H0005072i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2003H0005072i

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2003H0 Series

Part	1st Connector Mounting Feature	Style	2nd Contact Gender	2nd Connector Mounting Type	Features	1st Connector	Overall Impedance	Cable Type	Color	1st Contact Gender	Length	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector
Amphenol Custom Cable Q-2003H0005048i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	1200 mm	4 ft	48 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005002M	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	2 m	6.6 ft	78.7 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005003i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	76.2 mm		3 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005072i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	1.8 m	6 ft	72 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005108i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	2.7 m	9 ft	108 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005003M	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	3 m	9.8 '	118.1 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005036i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	91.44 cm		36 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005012i	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	304.8 mm		12 "	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H00031.5M	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-174	Black	Male	1.5 m	4.9 ft	59.1 in	4 GHz	Panel Mount	N-Type Jack
Amphenol Custom Cable Q-2003H0005001M	Bulkhead - Front Side Nut	SMB to N-Type	Female	Free Hanging (In-Line)	Shielded	Right Angle SMB Jack	50 Ohms	RG-316	Copper	Male	1 m	3.3 ft	39.4 in	4 GHz	Panel Mount	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 122.46
		25	$ 120.07
		50	$ 117.68
		100	$ 115.29
		250	$ 112.90

Description

General part information

Q-2003H0 Series

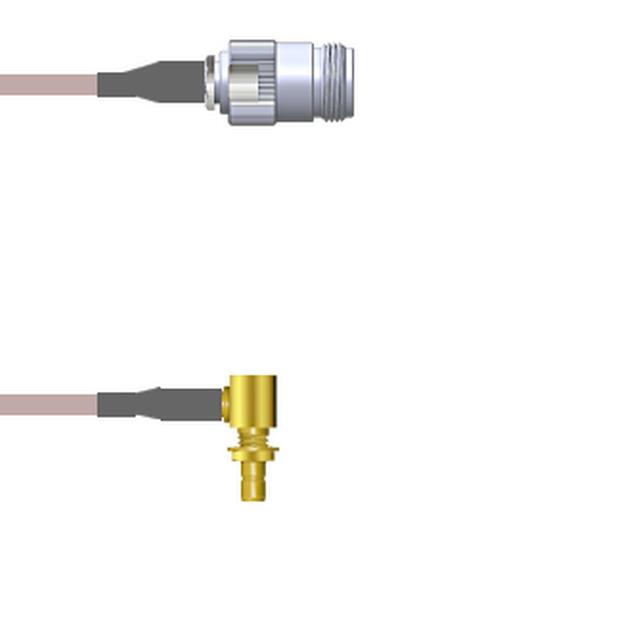

Cable Assembly Coaxial SMB to N-Type RG-316 72.0" (1.8m) 6.0'
