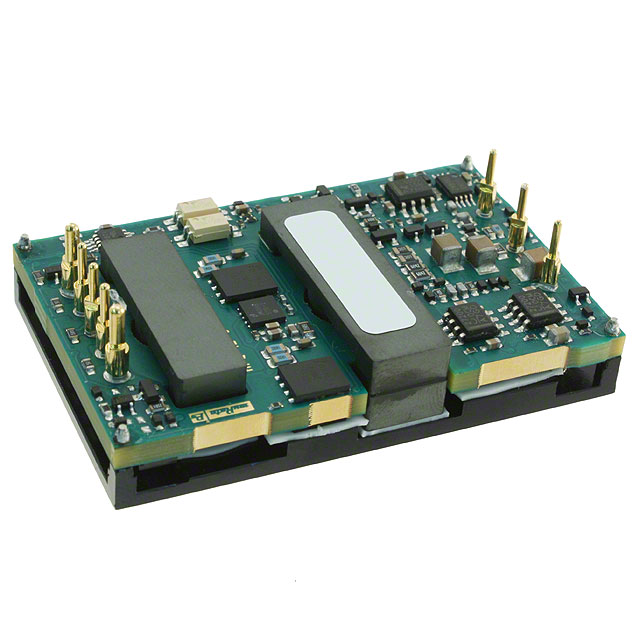

HPQ-3.3/50-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 165W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPQ-3.3/50-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 165W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HPQ-3.3/50-D48NB-C | HPQ-3.3 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable |
| Current - Output (Max) [Max] | 50 A | 50 A |
| Efficiency | 90 % | 90 % |
| Features | SCP, OTP, Remote On/Off, UVLO | SCP, OTP, Remote On/Off, UVLO |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module | 1/4 Brick, 8-DIP Module |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [z] | 12.7 mm | 10 - 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.4 - 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HPQ-3.3 Series
DC DC CONVERTER 3.3V 165W
| Part | Voltage - Isolation | Mounting Type | Voltage - Input (Max) [Max] | Package / Case | Applications | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Control Features | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Features | Number of Outputs | Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HPQ-3.3/50-D48NB-C | 2250 VDC | Through Hole | 75 V | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 36 V | 50 A | Active Low, Enable | 90 % | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 12.7 mm | 0.5 in | 58.4 mm | OTP, Remote On/Off, SCP, UVLO | 1 | Isolated Module | 3.3 V |
Murata Power Solutions Inc. HPQ-3.3/50-D48N-C | 2250 VDC | Through Hole | 75 V | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 36 V | 50 A | Active Low, Enable | 90 % | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 10 mm | 0.4 " | 58.4 mm | OTP, Remote On/Off, SCP, UVLO | 1 | Isolated Module | 3.3 V |
Description
General part information
HPQ-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 50A 36V - 75V Input
