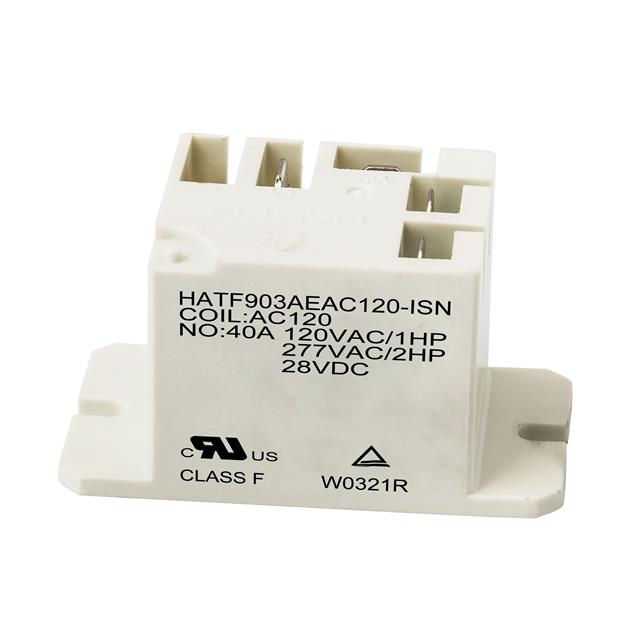

HATF903AEAC120-ISN

Active

Hasco Relays

RELAY SPST 40A 120V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPST 40A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY SPST 30A 12V

Part	Mounting Type	Contact Form	Coil Type	Termination Style	Operate Time	Contact Rating (Current)	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Release Time	Switching Voltage [Max]	Coil Current	Coil Insulation	Must Operate Voltage	Contact Material	Seal Rating	Switching Voltage
Hasco Relays HATF903ASDC12	Chassis Mount	SPST-NO (1 Form A)	Non Latching	Quick Connect - 0.250" (6.3mm)	15 ms	30 A	1.2 VDC	-40 °C	105 ░C	12 VDC	10 ms	277 VAC	77.4 mA	Class F	9 VDC	Silver Alloy
Hasco Relays HATF903AEAC120-ISN	Surface Mount	SPST-NO (1 Form A)	Non Latching		15 ms	40 A	12 VAC	-40 °C	85 °C	120 VAC	10 ms		40 mA	Class F	96 VAC	Silver Alloy	Sealed - Flux Protection	277 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 3.40

General part information

Relay SPST-NO (1 Form A) 120VAC Coil Surface Mount
