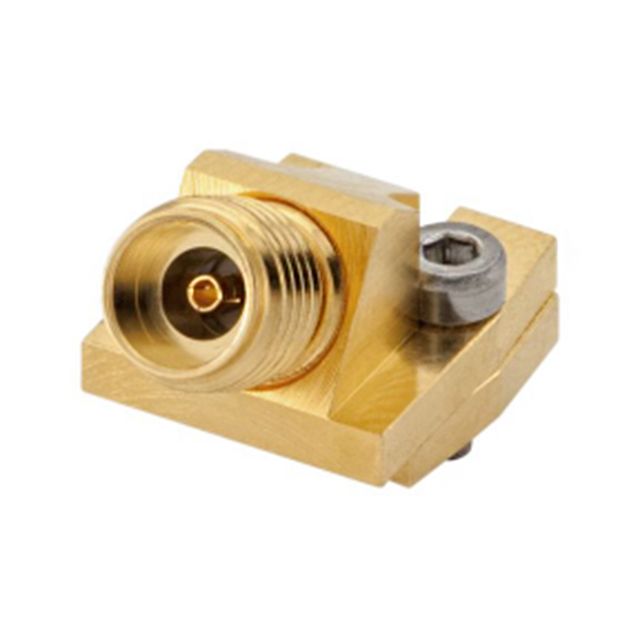

02K80A-40ML5

Obsolete

Rosenberger

CONN RPC2.92 JACK R/A 50OHM SMD

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN RPC2.92 JACK R/A 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

CONN RPC2.92 JACK R/A 50OHM SMD

Part	Connector Style	Center Contact Plating	Mating Cycles	Frequency - Max [Max]	Shield Termination	Housing Color	Center Contact Material	Dielectric Material	Number of Ports	Mounting Type	Features	Includes	Contact Termination	Body Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Impedance	Voltage Rating
Rosenberger 02K80A-40ML5	2.92 mm	Gold	500	40 GHz	Screw	Gold	Beryllium Copper	Polyetheretherketone (PEEK)	1	Surface Mount, Right Angle	Mounting Hardware	1 Connector, 2 Screws	Solder	Beryllium Copper	Female Socket, Jack	85 °C	-40 °C	Gold	50 Ohms	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
