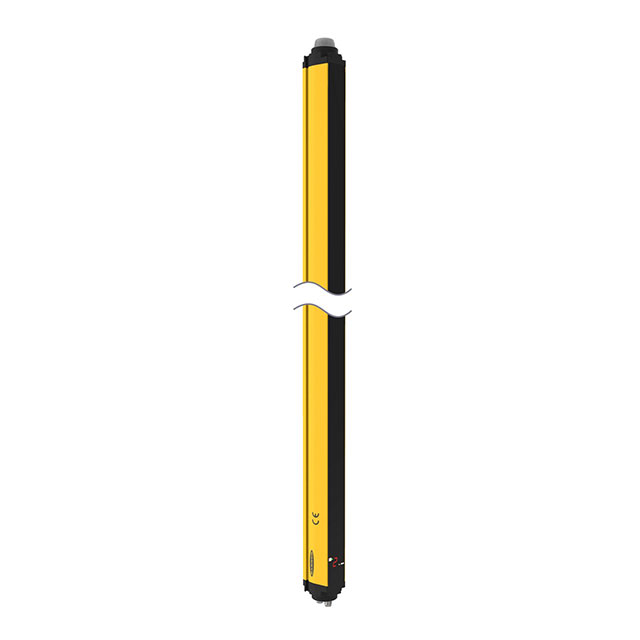

SGSMA3-400Q12

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMA3-400Q12

Beam Pitch	400 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	3
Operating Range [Max]	8 m
Operating Range [Min]	0.5 m
Protective Height [z]	800 mm
Voltage - Supply	24 VDC

Part	Operating Range [Max]	Operating Range [Min]	Features	Beam Pitch	Protective Height [z]	Ingress Protection	Voltage - Supply	Number of Beams
BANNER ENGINEERING SGSMA3-400Q12	8 m	0.5 m	Muting Function	400 mm	800 mm	IP65 - Dust Tight Water Resistant	24 VDC	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1050.01
Newark	Each	1	$ 1068.00

General part information

Light Curtain Muting Function

Technical documentation and resources

No documents available
