FLA.1S.250.CTAC52

Active

LEMO

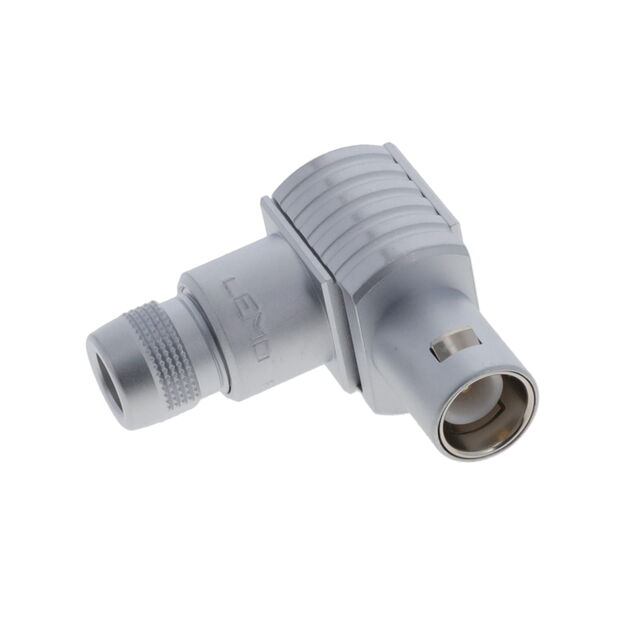

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

FLA.1S.250.CTAC52

Active

LEMO

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.15
		10	$ 38.66
		25	$ 36.99
		50	$ 35.80
		100	$ 34.61
		250	$ 32.70

Description

General part information

FLA.1S Series

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

Datasheet

Coaxial, Triaxial, Multi Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FLA.1S.250.CTAC52	FLA.1S Series

Accessory Type	-	Collet
Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174	174A, 188A, 196A, 316B, 178B, RG-122, 174, Belden 9222, 178, RG-174, 400, 223, 187A, 179B, RG-58C, 302, 59B
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.146 - 0.244 in
Cable Opening	-	0.126 - 0.224 in
Cable Opening	-	3.7 - 6.2 mm
Cable Opening	-	3.2 - 5.7 mm
Cable Opening	-	0.205 - 0.224 in
Cable Opening	-	1.4 - 5.7 mm
Cable Opening	-	4.2 mm
Cable Opening	-	0.055 - 0.126 in
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Coaxial	Coaxial, Triaxial
Connector Type	Male Pin, Plug	Plug, Male Pins, Female Sockets, Male Pin
Contact Finish - Mating	-	Gold
Contact Material	-	Brass, Bronze
Contact Termination	Solder	Solder
Current Rating (Amps)	-	7 - 18 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
For Use With/Related Products	-	1S Series Connector
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Number of Positions	-	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	120 - 305
Shield Termination	Clamp	Clamp
Shielding	-	Shielded

FLA.1S Series

CONN PLUG MALE 1P GOLD SLDR CUP

Part	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions	Contact Material	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Backshell Material, Plating	Color	Shielding	Primary Material	Fastening Type	Ingress Protection	Insert Material	Shell Material	For Use With/Related Products	Accessory Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Body Finish	Connector Style	Center Contact Material	Cable Group	Body Material	Mating Cycles	Dielectric Material	Center Contact Plating	Impedance	Contact Termination	Housing Color	Shield Termination	Number of Ports
LEMO FLA.1S.120.CTAC52	Gold	18 A	Male Pins, Plug	Chrome	Free Hanging (In-Line), Right Angle	-55 °C	250 °C	Backshell	1	Brass	120	0.165 in, 0.205 in	4.2 mm	5.2 mm	Keyed	Brass, Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polytetrafluoroethylene (PTFE)	Brass
LEMO FLA.1S.737.CN																								1S Series Connector	Collet
LEMO FLA.1S.305.CLAC62	Gold	7 A, 10 A	Female Sockets, Male Pins, Plug	Chrome	Free Hanging (In-Line), Right Angle	-55 °C	250 °C	Backshell		Brass, Bronze	305				Keyed	Brass, Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polyetheretherketone (PEEK)	Brass			0.244 in	0.224 in	6.2 mm	5.7 mm	UL94 V-0
LEMO FLA.1S.250.CTAC52			Male Pin, Plug		Free Hanging (In-Line), Right Angle	-55 °C	250 °C													Push-Pull	IP50										Chrome	Coaxial	Brass	174, 174A, 178B, 188A, 196A, 316B, RG-122	Brass	1000	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder	Silver	Clamp	1
LEMO FLA.1S.766.CN																								1S Series Connector	Collet
LEMO FLA.1S.302.CLAC52	Gold	15 A	Female Sockets, Male Pins, Plug	Chrome	Free Hanging (In-Line), Right Angle	-55 °C	250 °C	Backshell	2	Brass, Bronze	302	0.165 in, 0.205 in	4.2 mm	5.2 mm	Keyed	Brass, Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polyetheretherketone (PEEK)	Brass							UL94 V-0
LEMO FLA.1S.650.ZTA			Male Pin, Plug		Free Hanging (In-Line), Right Angle	-55 °C	250 °C													Push-Pull	IP50											Triaxial	Brass	178, Belden 9222, RG-174		1000	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder		Clamp	1
LEMO FLA.1S.250.CTAC57Z			Male Pin, Plug		Free Hanging (In-Line), Right Angle	-55 °C	250 °C													Push-Pull	IP50										Chrome	Coaxial	Brass	174, 174A, 178B, 188A, 196A, 316B, RG-122	Brass	1000	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder	Silver	Clamp
LEMO FLA.1S.275.CTAC62			Male Pin, Plug		Free Hanging (In-Line), Right Angle	-55 °C	250 °C													Push-Pull	IP50										Chrome	Coaxial	Brass	179B, 187A, 223, 302, 400, 59B, RG-58C	Brass	1000	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms	Solder	Silver	Clamp	1
LEMO FLA.1S.275.CTAC32			Male Pin, Plug		Free Hanging (In-Line), Right Angle	-55 °C	250 °C													Push-Pull	IP50										Chrome	Coaxial	Brass	179B, 187A, 223, 302, 400, 59B, RG-58C	Brass	1000	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms	Solder	Silver	Clamp
