Q-1U03B0005108i

Active

Amphenol Custom Cable

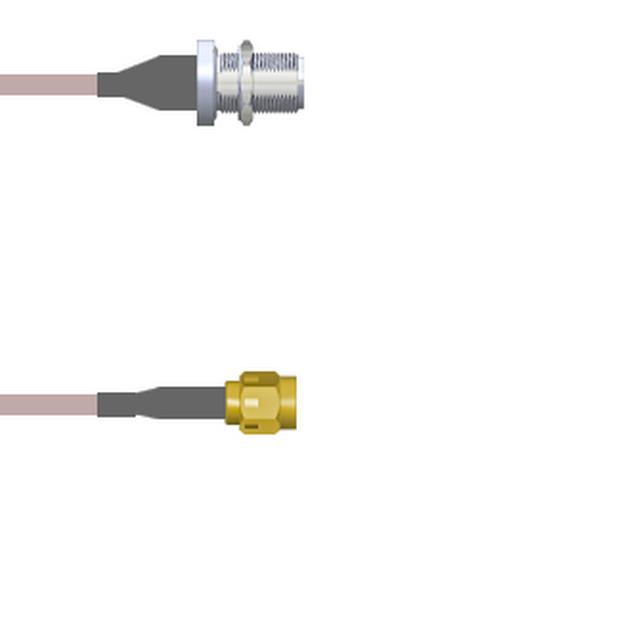

CBL ASSY SMA-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U03B0005108i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03B0005108i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1U03B0 Series

Part	2nd Connector	Color	Features	1st Connector	2nd Connector Mounting Feature	Cable Type	Style	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	Overall Impedance	1st Contact Gender	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U03B0005108i	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-1U03B00050.5M	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	50 cm		19.69 "
Amphenol Custom Cable Q-1U03B0003.25M	N-Type Jack	Black	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male				9.843 "	250 mm
Amphenol Custom Cable Q-1U03B0005003i	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	76.2 mm		3 in
Amphenol Custom Cable Q-1U03B0005.75M	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	750 mm		29.53 "
Amphenol Custom Cable Q-1U03B0005003M	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	3 m	9.8 '	118.1 in
Amphenol Custom Cable Q-1U03B0003.75M	N-Type Jack	Black	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	750 mm		29.53 "
Amphenol Custom Cable Q-1U03B0003048i	N-Type Jack	Black	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-1U03B00032.5M	N-Type Jack	Black	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-1U03B0005060i	N-Type Jack	Copper	Shielded	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to N-Type	Panel Mount	Free Hanging (In-Line)	Female	11 GHz	50 Ohms	Male	1.5 m	5 ft	5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 151.49
		25	$ 148.56
		50	$ 145.63
		100	$ 142.71
		250	$ 139.78

Description

General part information

Q-1U03B0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
