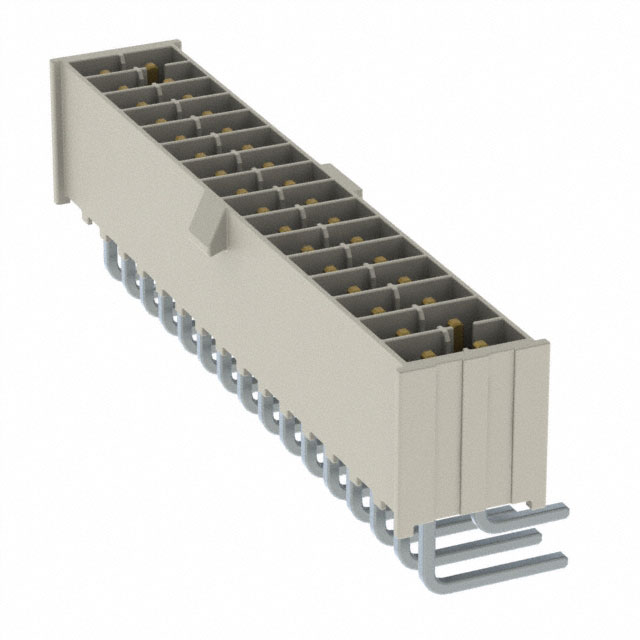

IPL1-116-01-L-D-RA-K

Active

Samtec Inc.

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 32 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsIPL1 Series Other Related Documents 01 IPD1 Series Other Related Documents 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-116-01-L-D-RA-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Length - Post	2.16 mm
Contact Length - Post	0.085 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-116 Series

Part	Shrouding	Insulation Material	Connector Type	Contact Shape	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Termination	Number of Positions Loaded	Contact Finish - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Voltage Rating	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Features	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. IPL1-116-02-L-S-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	10 çin	0.25 çm	Phosphor Bronze	Surface Mount	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural	16	8.13 mm	0.32 in	0.1 in	2.54 mm	1
Samtec Inc. IPL1-116-01-S-S-RA-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	30 Áin	0.76 Ám	Phosphor Bronze	Through Hole Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural	16	6.1 mm	0.24 in	0.1 in	2.54 mm	1	2.16 mm	0.085 in
Samtec Inc. IPL1-116-02-L-SH-K-TR	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	10 çin	0.25 çm	Phosphor Bronze	Surface Mount Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural	16	5.6 mm	0.22 in	0.1 in	2.54 mm	1			Board Guide
Samtec Inc. IPL1-116-01-F-S-RA-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	3 µin	0.076 µm	Phosphor Bronze	Through Hole Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural	16	6.1 mm	0.24 in	0.1 in	2.54 mm	1	2.16 mm	0.085 in
Samtec Inc. IPL1-116-01-S-D-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	30 Áin	0.76 Ám	Phosphor Bronze	Through Hole	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural		8.13 mm	0.32 in	0.1 in	2.54 mm	2				0.12 in	3.05 mm	2.54 mm	0.1 in
Samtec Inc. IPL1-116-01-L-D-RA-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	10 çin	0.25 çm	Phosphor Bronze	Through Hole Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural		7.37 mm	0.29 in	0.1 in	2.54 mm	2	2.16 mm	0.085 in				2.54 mm	0.1 in
Samtec Inc. IPL1-116-01-L-D-RE1-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	10 çin	0.25 çm	Phosphor Bronze	Through Hole Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural		8.25 mm	0.325 in	0.1 in	2.54 mm	2	2.16 mm	0.085 in				2.54 mm	0.1 in
Samtec Inc. IPL1-116-01-F-S-RE1-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	3 µin	0.076 µm	Phosphor Bronze	Through Hole Right Angle	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural	16	6.1 mm	0.24 in	0.1 in	2.54 mm	1	2.16 mm	0.085 in
Samtec Inc. IPL1-116-01-F-D-P	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	3 µin	0.076 µm	Phosphor Bronze	Through Hole	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural		8.13 mm	0.32 in	0.1 in	2.54 mm	2				0.12 in	3.05 mm	2.54 mm	0.1 in
Samtec Inc. IPL1-116-01-F-D-K	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	Square	Male Pin	3 µin	0.076 µm	Phosphor Bronze	Through Hole	Solder	All	Tin	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	Gold	5.46 mm	0.215 in	UL94 V-0	675 VAC 954 VDC	Natural		8.13 mm	0.32 in	0.1 in	2.54 mm	2				0.12 in	3.05 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.33
		50	$ 3.97
		100	$ 3.73
		250	$ 3.36
		500	$ 3.08
		1000	$ 2.98
Newark	Each	1	$ 6.04
		10	$ 5.64
		100	$ 4.79
		250	$ 4.11
		500	$ 3.79
		1000	$ 3.56

Description

General part information

IPL1-116 Series

Connector Header Through Hole, Right Angle 32 position 0.100" (2.54mm)

Documents

Technical documentation and resources

IPL1 Series Other Related Documents 01

IPD1 Series Other Related Documents 03

IPL1 Datasheet

Datasheet

Technical Data Sheet EN

Datasheet
