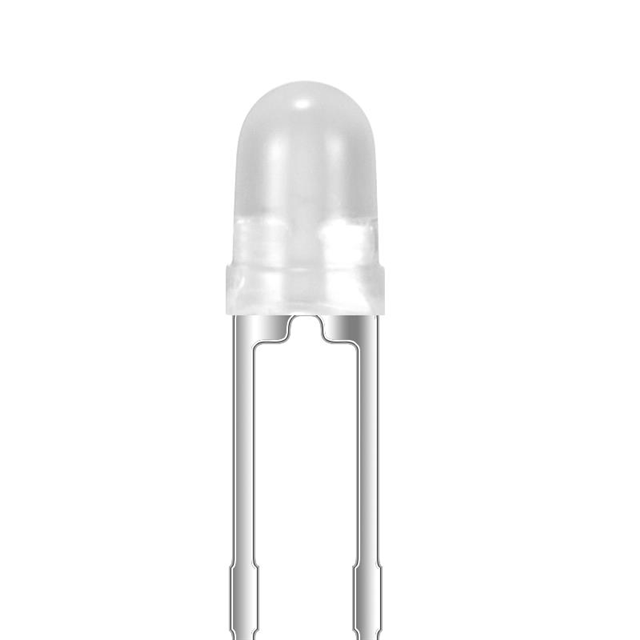

XLMDKVG37M

Active

SunLED

LED GREEN/RED DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

SunLED

LED GREEN/RED DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Specification	XLMDKVG37M

Color	Red, Green
Configuration	Bidirectional
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	5.6 mm
Lens Color	White
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating [custom]	497 mcd
Millicandela Rating [custom]	79 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [diameter]	2.9 mm
Supplier Device Package	T-1 (3mm)
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V
Wavelength - Dominant	630 nm, 570 nm
Wavelength - Peak	574 nm, 460 nm

Part	Package / Case	Wavelength - Peak	Configuration	Current - Test	Supplier Device Package	Color	Lens Color	Viewing Angle	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [diameter]	Lens Size	Lens Size	Lens Transparency	Mounting Type	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style
SunLED XLMDKVG37M	Radial	460 nm 574 nm	Bidirectional	20 mA 20 mA	T-1 (3mm)	Green Red	White	60 °	5.6 mm	2.1 V	1.95 V	2.9 mm	3 mm	T-1	Diffused	Through Hole	570 nm 630 nm	497 mcd	79 mcd	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red Radial
