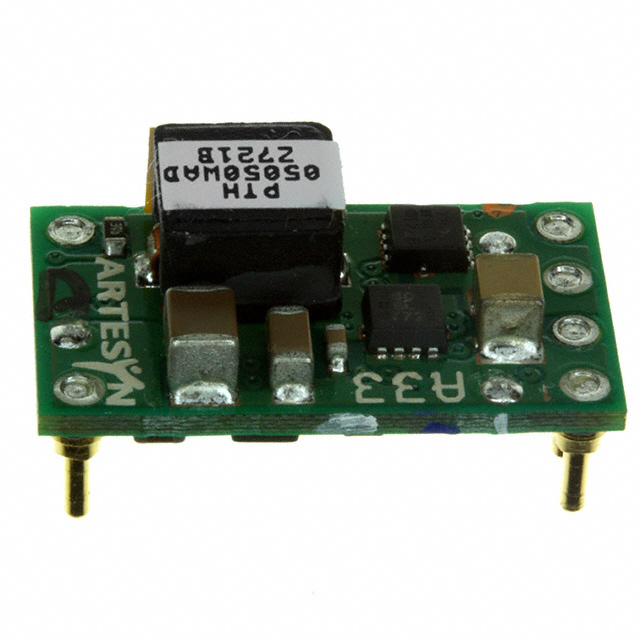

PTH05050WAD

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.6V 21W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.6V 21W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 0.8-3.6V 22W

Part	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Features	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)
ARTESYN / Advanced Energy PTH05050WAZT	Non-Isolated PoL Module	Surface Mount	85 °C	-40 °C	6-SMD Module	95 %	0.8 V	3.6 V	5.5 V	ITE (Commercial)	4.5 V	Remote On/Off, SCP, UVLO	1	6 A	8.5 mm	22.1 mm	0.87 in	0.34 in	12.7 mm	0.5 in
ARTESYN / Advanced Energy PTH05050WAD	Non-Isolated PoL Module	Through Hole	85 °C	-40 °C	6-DIP Module	95 %	0.8 V	3.6 V	5.5 V	ITE (Commercial)	4.5 V	UVLO	1	6 A	8.6 mm	22.1 mm	0.87 in	0.34 in	12.7 mm	0.5 in	21 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 4.5V - 5.5V Input

Technical documentation and resources

No documents available
