800-14-19D-RE-0003F-1

Active

CnC Tech, LLC

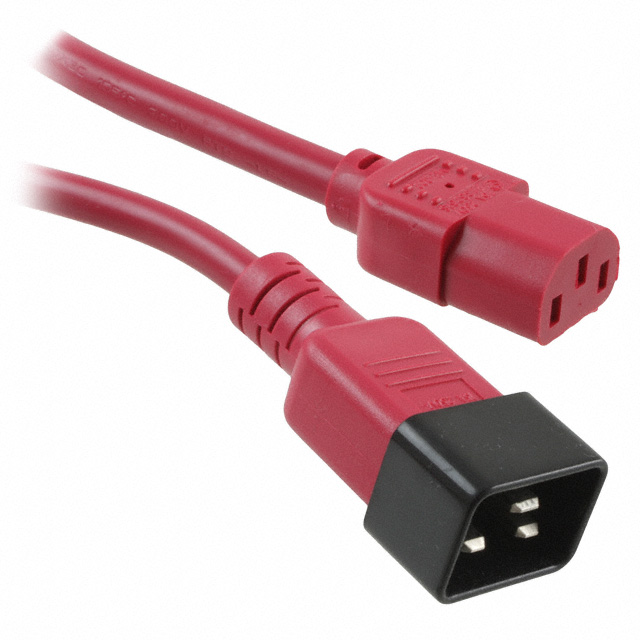

CORD 14AWG IEC320C20 - 320C13 3'

Deep-Dive with AI

Search across all available documentation for this part.

800-14-19D-RE-0003F-1

Active

CnC Tech, LLC

CORD 14AWG IEC320C20 - 320C13 3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-14-19D-RE-0003F-1

1st Connector	IEC 320-C20
Approval Agency Marking	UL, cUL
Approved Countries	United States, Canada
Color	Red
Cord Type	SJT
Current Rating (Amps)	15 A
Length	91.44 cm
Length [x]	3 ft
Number of Conductors	3
Operating Temperature	105 C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VDC
Wire Gauge	13.5 AWG

800-14 Series

Part	Approved Countries	Wire Gauge	Approval Agency Marking	Voltage Rating	Shielding	Operating Temperature	Current Rating (Amps)	Color	Style	Cord Type	Number of Conductors	Length	Length [x]	1st Connector	Features	Length	Length [x]	2nd Connector
CnC Tech, LLC 800-14-19D-RE-0003F	Canada United States	13.5 AWG	CSA cUL UL	250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	91.44 cm	3 ft	IEC 320-C20
CnC Tech, LLC 800-14-0OD-GR-0006F	Canada United States	13.5 AWG	CSA cUL UL	125 VAC	Unshielded	105 C	15 A	Gray	Female Sockets Male Pins	SJT	3	1.83 m		NEMA 5-15P	Hospital Grade	6 ft
CnC Tech, LLC 800-14-19D-RE-0004F-1		13.5 AWG		250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3		4 ft	IEC 320-C20			1.22 m
CnC Tech, LLC 800-14-24D-RE-0003F-1	Canada United States	13.5 AWG	cUL UL	250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	91.44 cm	3 ft	IEC 320-C14				IEC 320-C19
CnC Tech, LLC 800-14-19D-RE-0003F-1	Canada United States	13.5 AWG	cUL UL	250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	91.44 cm	3 ft	IEC 320-C20
CnC Tech, LLC 800-14-24D-RE-0006F	Canada United States	13.5 AWG	CSA cUL UL	250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	1.83 m		IEC 320-C14		6 ft		IEC 320-C19
CnC Tech, LLC 800-14-12D-RE-0003F-1		13.5 AWG		250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	91.44 cm	3 ft	IEC 320-C14
CnC Tech, LLC 800-14-12D-RE-0002F-1		13.5 AWG		250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	609.6 mm	2 '	IEC 320-C14
CnC Tech, LLC 800-14-24D-RE-0006F-1	Canada United States	13.5 AWG	cUL UL	250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3	1.83 m		IEC 320-C14		6 ft		IEC 320-C19
CnC Tech, LLC 800-14-24D-RE-0004F-1		13.5 AWG		250 VDC	Unshielded	105 C	15 A	Red	Female Sockets Male Pins	SJT	3		4 ft	IEC 320-C14			1.22 m	IEC 320-C19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 9.79

Description

General part information

800-14 Series

3.00' (914.4mm) Power Cord Red IEC 320-C20 To IEC 320-C13 SJT

Documents

Technical documentation and resources

No documents available
