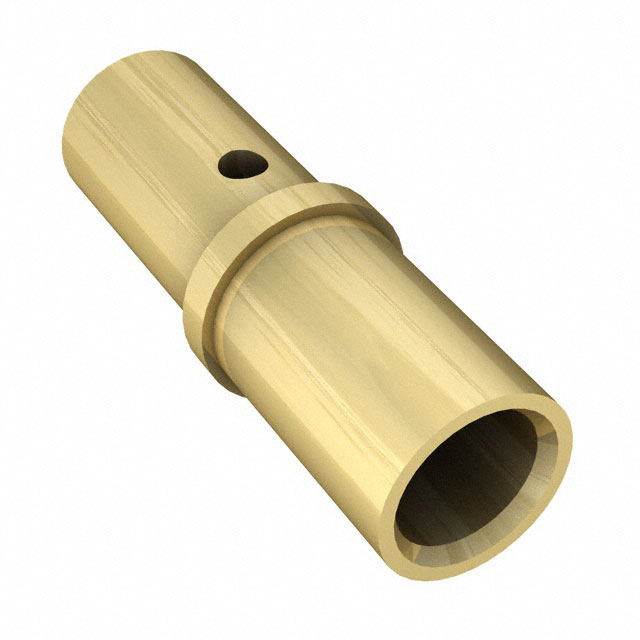

0712-0-33-15-08-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .084-.102 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0712-0-33-15-08-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.102 " |
| Accepts Pin Diameter [Max] | 2.59 mm |
| Accepts Pin Diameter [Min] | 0.084 " |
| Accepts Pin Diameter [Min] | 2.13 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.18 in |
| Flange Diameter [diameter] | 4.57 mm |
| Length - Overall [x] | 0.518 in |
| Length - Overall [x] | 13.16 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.122 in |
| Pin Hole Diameter [diameter] | 3.1 mm |
| Socket Depth | 5.33 mm |
| Socket Depth | 0.21 in |
| Tail Type | Crimp |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.64 | |
| 10 | $ 2.02 | |||
| 100 | $ 1.56 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.22 | |||
| 5000 | $ 1.04 | |||
Description
General part information
0712-0 Series
Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) Crimp Solder
