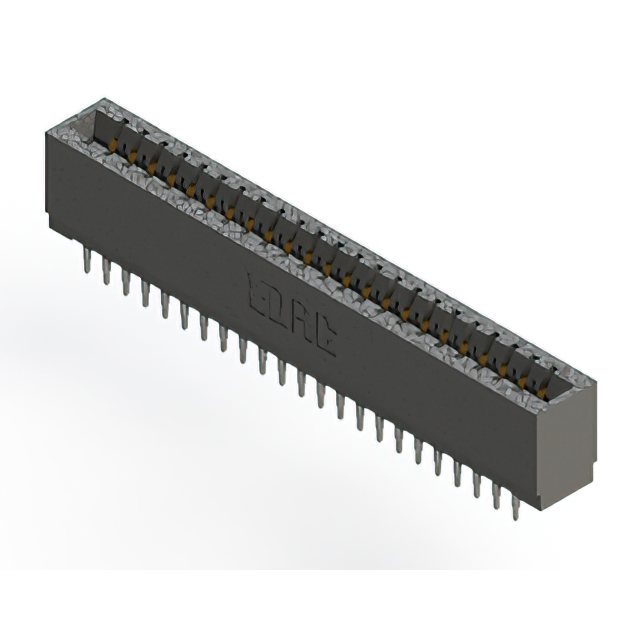

726-046-520-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

726-046-520-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	726-046-520-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	46
Number of Positions/Bay/Row [custom]	23
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

726-046 Series

Part	Contact Material	Contact Type	Color	Read Out	Termination Rows	Material - Insulation	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]
EDAC Inc. 726-046-525-101	Copper Alloy	Cantilever	Black	Single	1	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	1	Press-Fit	Gold	Non Specified - Single Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	46
EDAC Inc. 726-046-540-101	Copper Alloy	Cantilever	Black	Single	1	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	1	Press-Fit Wire Wrap	Gold	Non Specified - Single Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	46
EDAC Inc. 726-046-520-201	Copper Alloy	Cantilever	Black	Dual	2	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	2	Press-Fit	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	23
EDAC Inc. 726-046-553-101	Copper Alloy	Cantilever	Black	Single	1	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	1	Press-Fit Wire Wrap	Gold	Non Specified - Single Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	46
EDAC Inc. 726-046-520-101	Copper Alloy	Cantilever	Black	Single	1	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	1	Press-Fit	Gold	Non Specified - Single Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	46
EDAC Inc. 726-046-541-101	Copper Alloy	Cantilever	Black	Single	1	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	1	Press-Fit Wire Wrap	Gold	Non Specified - Single Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	46
EDAC Inc. 726-046-540-201	Copper Alloy	Cantilever	Black	Dual	2	Polyester Thermoplastic	Female	46	-40 °C	105 ░C	2	Press-Fit Wire Wrap	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	0.125 in	3.18 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.02
Newark	Each	25	$ 8.75
		50	$ 8.55
		100	$ 8.14
		250	$ 7.94
		500	$ 7.66

Description

General part information

726-046 Series

46 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
