D2041918

Active

ITT Cannon, LLC

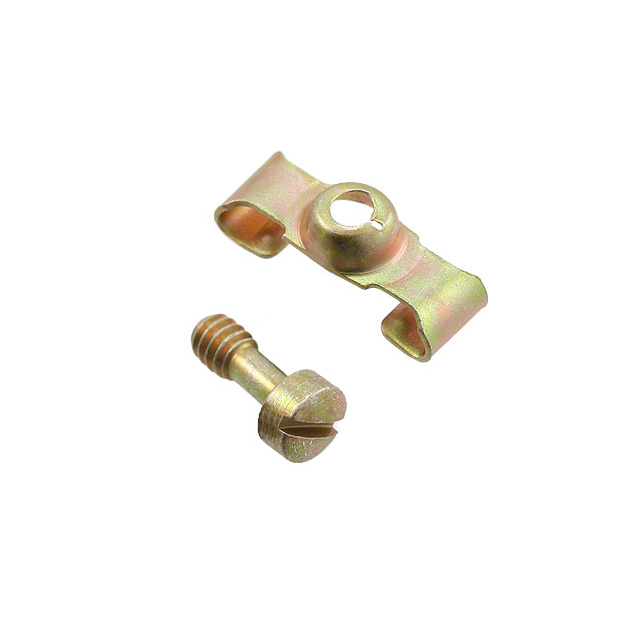

SCREW LOCK MALE 1SCREW & 1CLIP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

SCREW LOCK MALE 1SCREW & 1CLIP

Technical Specifications

Parameters and characteristics for this part

Specification	D2041918

Accessory Type	Jackscrew, Slotted
Features	Clip
For Use With/Related Products	D-Sub Connectors
Length - Below Head	7.14 mm
Length - Below Head	0.281 in
Thread Size	4-40

Part	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Features	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Thread Size	For Use With/Related Products	Length - Below Head	Length - Below Head
ITT Cannon, LLC D20418-102	Jackscrew Socket	12.7 mm	0.5 in	Hardware Included	0.5 in	12.7 mm	4-40	D-Sub Connectors Non-Magnetic
ITT Cannon, LLC D20419-121	Jackscrew Slotted			Clip			4-40	D-Sub Connectors	7.14 mm	0.281 in
ITT Cannon, LLC D20419-38	Jackscrew Slotted			Clip			4-40	D-Sub Connectors	7.14 mm	0.281 in
ITT Cannon, LLC D20418-82	Jackscrew Socket			Hardware Included			4-40 Screw 4-40 Socket	D-Sub Connectors	7.92 mm	0.312 "
ITT Cannon, LLC D2041814	Jackscrew Socket						4-40	D-Sub Connectors Non-Magnetic
ITT Cannon, LLC D2041918	Jackscrew Slotted			Clip			4-40	D-Sub Connectors	7.14 mm	0.281 in
ITT Cannon, LLC D20418-83	Jackscrew Socket			Hardware Included	0.625 "	15.88 mm	4-40 Screw 4-40 Socket	D-Sub Connectors	15.88 mm	0.625 in
ITT Cannon, LLC D20419-211	Jackscrew Slotted			Clip			4-40	D-Sub Connectors	6.35 mm	0.25 in
ITT Cannon, LLC D20419-219	Jackscrew Slotted			Clip			4-40	D-Sub Connectors	7.14 mm	0.281 in
ITT Cannon, LLC D2041874	Jackscrew Socket	19.05 mm	0.75 "	Hardware Included	0.75 in	19.05 mm	4-40 Screw 4-40 Socket	D-Sub Panel Mount Connectors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew, Slotted For D-Sub Connectors

Technical documentation and resources

No documents available
