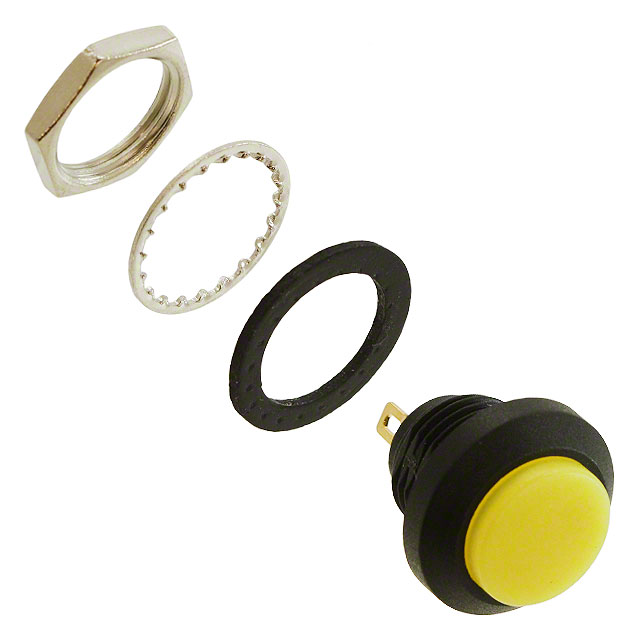

GPB556A05BA

Active

CW Industries

SWITCH PUSH SPST-NO 125MA 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH PUSH SPST-NO 125MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB556A05BA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Amber
Current Rating (Amps)	125 mA, 100 mA
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - DC	Actuator Marking	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Voltage Rating - AC	Mounting Type	Switch Function	Circuit	Illumination Voltage (Nominal)	Illumination Type, Color
CW Industries GPB556A05BA	50 VDC	No Marking	Solder Lug	Button Round	12 mm	100 mA 125 mA	Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Amber	125 V	Panel Mount Front	Off-Mom	SPST-NO
CW Industries GPB556AL05BR		No Marking	Solder Lug	Button Round	12 mm	125 mA	Illuminated Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Red	125 V	Panel Mount Front	Off-Mom	SPST-NO	2 VDC	LED Red
CW Industries GPB556A05BW	50 VDC	No Marking	Solder Lug	Button Round	12 mm	100 mA 125 mA	Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	White	125 V	Panel Mount Front	Off-Mom	SPST-NO
CW Industries GPB556A05BU	50 VDC	No Marking	Solder Lug	Button Round	12 mm	100 mA 125 mA	Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Blue	125 V	Panel Mount Front	Off-Mom	SPST-NO
CW Industries GPB556A05BG	50 VDC	No Marking	Solder Lug	Button Round	12 mm	100 mA 125 mA	Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Green	125 V	Panel Mount Front	Off-Mom	SPST-NO
CW Industries GPB556A05BR	50 VDC	No Marking	Solder Lug	Button Round	12 mm	100 mA 125 mA	Standard	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Red	125 V	Panel Mount Front	Off-Mom	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
