SUW62412 Series

Part	Package / Case	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Output 1	Number of Outputs	Current - Output (Max)	Voltage - Input (Max)	Applications	Power (Watts)	Type	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Efficiency	Voltage - Isolation	Voltage - Output 2	Features

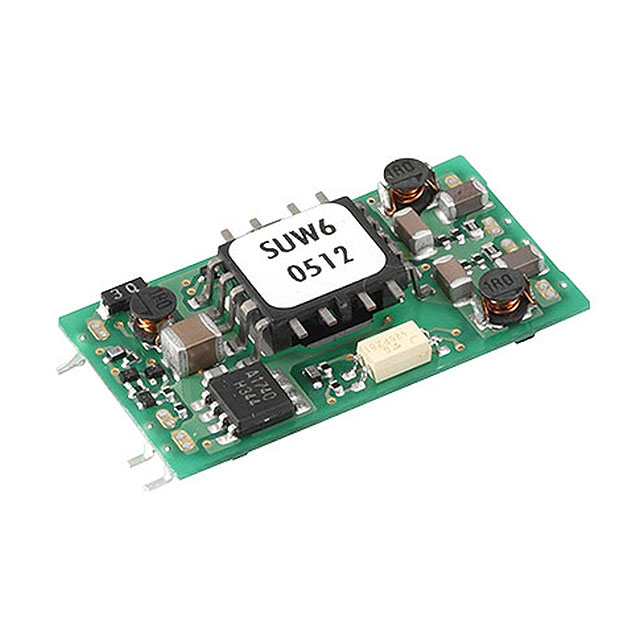

Cosel USA, Inc. SUW62412BP-G	7-SMD Module	0.71 in	1.24 in	0.26 in	12 V	2	250 mA	36 V	ITE (Commercial)	6 W	Isolated Module	18 V	85 °C	-40 °C	Surface Mount	86 %	500 V	-12 V
Cosel USA, Inc. SUW62412C	7-DIP Module	0.71 in	1.24 in	0.26 in	12 V	2	250 mA	36 V	ITE (Commercial)		Isolated Module	18 V	85 °C	-40 °C	Through Hole	86 %	500 V	-12 V	OCP Remote On/Off
Cosel USA, Inc. SUW62412C-G	7-DIP Module	0.71 in	1.24 in	0.26 in	12 V	2	250 mA	36 V	ITE (Commercial)	6 W	Isolated Module	18 V	85 °C	-40 °C	Through Hole	86 %	500 V	-12 V
