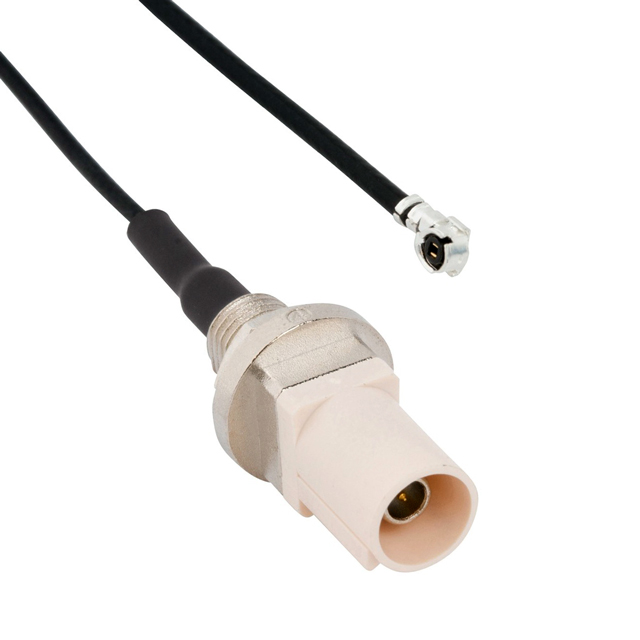

095-820-109-10B

Active

Amphenol RF

AMC RIGHT ANGLE PLUG TO FAKRA STRAIGHT BULKHEAD PLUG IP67 1.37 MM 50 OHM 100 MILLIMETER B KEY CODE (3.93 INCHES)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

095-820-109-10B

Active

Amphenol RF

AMC RIGHT ANGLE PLUG TO FAKRA STRAIGHT BULKHEAD PLUG IP67 1.37 MM 50 OHM 100 MILLIMETER B KEY CODE (3.93 INCHES)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-820-109-10B

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra SMB Plug
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Type [diameter]	1.37 mm
Color	Black
Features	Locking
Frequency - Max [Max]	6000 MHz
Length [x]	0.1 m
Length [x]	3.937 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC), AMC to Fakra SMB

095-820 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]	Features	2nd Contact Gender	Cable Type [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	1st Connector Mounting Type	1st Contact Gender	2nd Connector Mounting Feature	Overall Impedance	Style	2nd Connector	Cable Type	Length	Length
Amphenol RF 095-820-109-10A	Panel Mount	6000 MHz	0.1 m	3.937 in	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-124-30Z	Panel Mount	6000 MHz	300 mm	11.811 in	Locking	Male		Black			AMC4 Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	AMC4 to Fakra SMB	Fakra SMB Plug	1.13mm OD Coaxial Cable
Amphenol RF 095-820-109-25C	Panel Mount	6000 MHz	250 mm	9.843 "	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-124-15Z	Panel Mount	6000 MHz	150 mm	5.906 "	Locking	Male		Black			AMC4 Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	AMC4 to Fakra SMB	Fakra SMB Plug	1.13mm OD Coaxial Cable
Amphenol RF 095-820-109-25B	Panel Mount	6000 MHz	250 mm	9.843 "	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-109-05B	Panel Mount	6000 MHz	50 mm	1.969 in	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-109-20B	Panel Mount	6000 MHz			Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug		7.874 in	200 mm
Amphenol RF 095-820-109-10B	Panel Mount	6000 MHz	0.1 m	3.937 in	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-109-15C	Panel Mount	6000 MHz	150 mm	5.906 "	Locking	Male	1.37 mm	Black	90 °C	-40 °C	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	U.FL (UMCC) AMC to Fakra SMB	Fakra SMB Plug
Amphenol RF 095-820-124-20Z	Panel Mount	6000 MHz			Locking	Male		Black			AMC4 Plug Right Angle	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	50 Ohms	AMC4 to Fakra SMB	Fakra SMB Plug	1.13mm OD Coaxial Cable	7.874 in	200 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 21.01
Newark	Each	100	$ 22.32
		100	$ 22.32
		250	$ 21.12
		250	$ 21.12

Description

General part information

095-820 Series

Cable Assembly Coaxial U.FL (UMCC), AMC to Fakra SMB 1.37mm OD Coaxial Cable 3.937" (100.00mm)
