Q-2C0710003108i
ActiveAmphenol Custom Cable

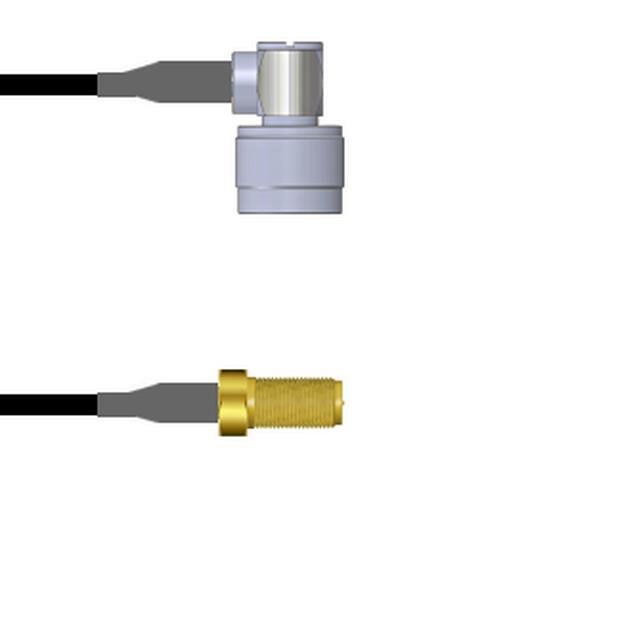

CBL ASSY RPSMA-NTYPE JACK-PLG 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C0710003108i
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JACK-PLG 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C0710003108i |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Q-2C0710 Series
| Part | 1st Connector Mounting Type | 2nd Connector Mounting Type | Style | 1st Connector | 1st Contact Gender | Frequency - Max [Max] | Color | 2nd Contact Gender | Length | Length | Overall Impedance | Features | Cable Type | 2nd Connector | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Copper | Male | 152.4 mm | 6 in | 50 Ohms | Shielded | RG-316 | N-Type Plug Right Angle | |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Copper | Male | 2.1 m | 84 in | 50 Ohms | Shielded | RG-316 | N-Type Plug Right Angle | 7 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 609.6 mm | 24 " | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 1200 mm | 48 in | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | 4 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 1.5 m | 5 ' | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | 5 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 1.8 m | 72 in | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | 6 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 50 cm | 19.69 " | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Copper | Male | 1.5 m | 59.1 in | 50 Ohms | Shielded | RG-316 | N-Type Plug Right Angle | 4.9 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 2.7 m | 108 in | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle | 9 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | RP-SMA to N-Type | RP-SMA Jack | Male | 11 GHz | Black | Male | 152.4 mm | 6 in | 50 Ohms | Shielded | RG-174 | N-Type Plug Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.89 | |
| 25 | $ 78.34 | |||
| 50 | $ 76.79 | |||
| 100 | $ 75.25 | |||
| 250 | $ 73.70 | |||
Description
General part information
Q-2C0710 Series
Cable Assembly Coaxial RP-SMA to N-Type RG-174 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
