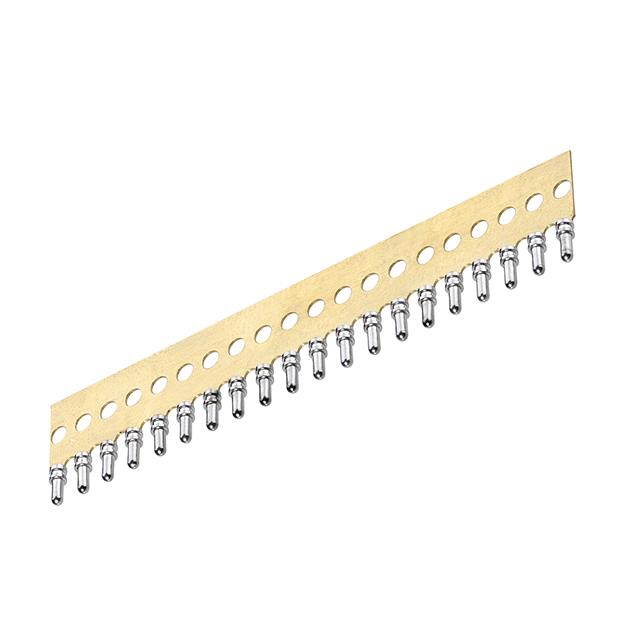

D01-9842001

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSub Miniature Sockets Spec Sheet Datasheet

D01-9842001

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSub Miniature Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9842001

Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Strip of 20
Flange Diameter [diameter]	1.45 mm
Flange Diameter [diameter]	0.057 in
Insertion Force [Max]	6 N
Insertion Force [Min]	2 N
Length - Overall [x]	0.142 in
Length - Overall [x]	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Socket Depth [z]	3.15 mm
Socket Depth [z]	0.124 "
Tail Type	No Tail
Termination	Solder

D01-984 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Features	Tail Type	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Insertion Force [Min]	Insertion Force [Max]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Socket Depth [z]	Socket Depth [z]
Harwin Inc. D01-9842001	1.45 mm	0.057 in	Strip of 20	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9843201	1.45 mm	0.057 in	Strip of 32	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9841001	1.45 mm	0.057 in	Strip of 10	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9841401	1.45 mm	0.057 in	Strip of 14	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9841201	1.45 mm	0.057 in		No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9840901	1.45 mm	0.057 in	Strip of 9	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "
Harwin Inc. D01-9840801	1.45 mm	0.057 in	Strip of 8	No Tail	0.039 in	0.99 mm	1.09 mm	0.043 in	2 N	6 N	Gold	0.142 in	3.61 mm	100 °C	-55 °C	Beryllium Copper	Solder	3.15 mm	0.124 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	140	$ 4.66
Newark	Each	100	$ 5.47
		250	$ 5.05
		500	$ 4.66
		1000	$ 4.27
		2500	$ 3.86

Description

General part information

D01-984 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Sub Miniature Sockets Spec Sheet

Datasheet
