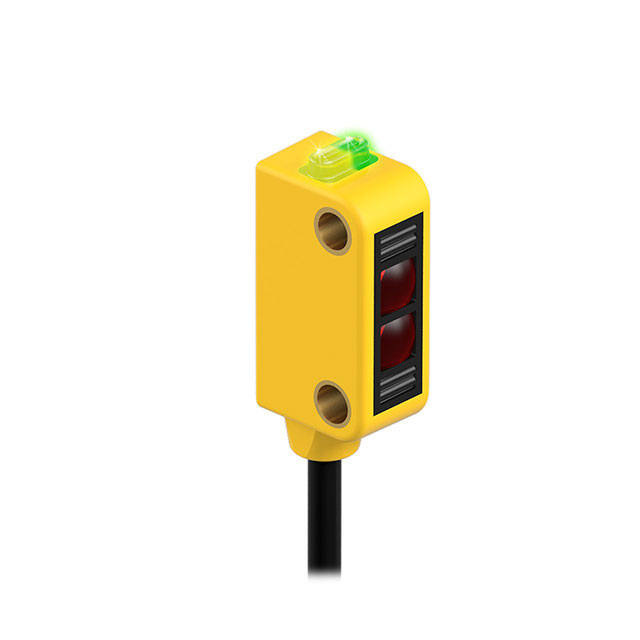

Q12AB6FF30Q5

Active

BANNER ENGINEERING

WORLD-BEAM Q12 SERIES: FIXED-FIELD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM Q12 SERIES: FIXED-FIELD

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Ingress Protection	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Response Time	Connection Method	Cable Length	Cable Length
BANNER ENGINEERING Q12AB6FF30Q5	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	1.181 in	30 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Connector
BANNER ENGINEERING Q12AB6FF30Q	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	1.181 in	30 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Connector
BANNER ENGINEERING Q12AB6FF50Q5	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	1.969 in	50 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Connector
BANNER ENGINEERING Q12AB6R	Red LED	IEC IP67	Through-Beam	30 VDC	10 VDC	78.74 "	2 m	55 °C	-20 C	NPN/PNP - Light-ON	1.3 ms	Cable	78.74 in	2 m
BANNER ENGINEERING Q12AB6FF15	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	0.591 "	15 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Cable	78.74 in	2 m
BANNER ENGINEERING Q12AB6FF15Q	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	0.591 "	15 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Connector
BANNER ENGINEERING Q12AB6FF50	LED	IEC IP67	Background Suppression	30 VDC	10 VDC	1.969 in	50 mm	55 °C	-20 C	NPN/PNP - Light-ON	700 µs	Cable	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.00
Newark	Each	1	$ 135.00

General part information

Background Suppression Optical Sensor 1.181" (30mm) NPN/PNP - Light-ON
