ALQ109
ActivePanasonic Electric Works

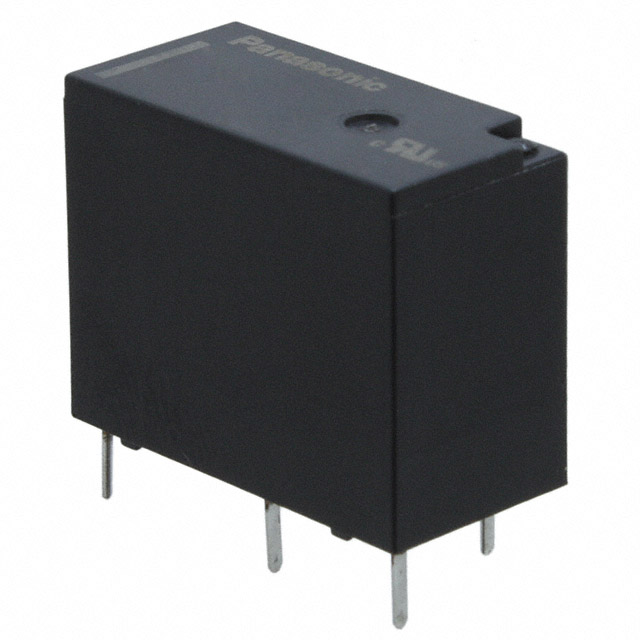

RELAY GEN PURPOSE SPDT 10A 9V
Deep-Dive with AI
Search across all available documentation for this part.
ALQ109
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 9V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALQ109 |
|---|---|
| Approval Agency | cURuus, CQC, VDE |
| Coil Current | 44.4 mA |
| Coil Insulation | Class B |
| Coil Resistance | 203 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 9 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.28 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.96 | |||
| 300 | $ 0.86 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
Description
General part information
ALQ10 Series
General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
