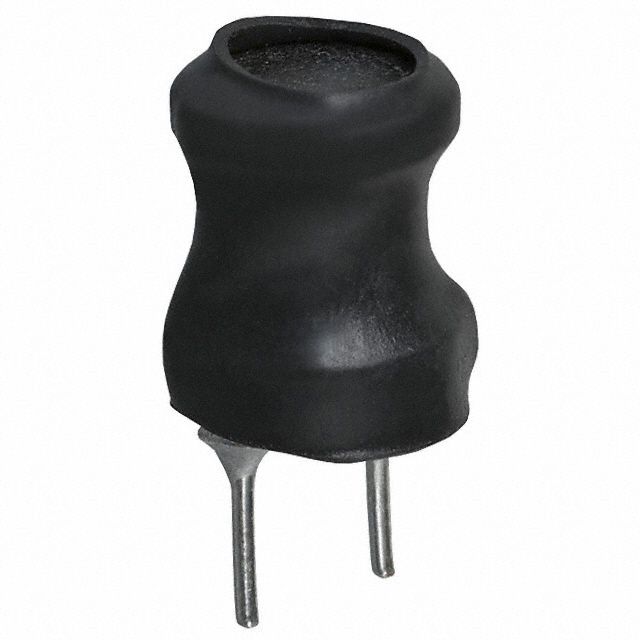

RL822-821K-RC

Active

Bourns Inc.

FIXED IND 820UH 180MA 2.7 OHM TH

Search across all available documentation for this part.

Active

Bourns Inc.

FIXED IND 820UH 180MA 2.7 OHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	DC Resistance (DCR) [Max]	Mounting Type	Q @ Freq	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency - Self Resonant	Tolerance	Material - Core	Current Rating (Amps)
Bourns Inc. RL822-821K-RC	105 ░C	-55 °C	Unshielded	2.7 Ohm	Through Hole	20 796 kHz	Radial Vertical Cylinder	11 mm	0.433 in	Drum Core Wirewound	820 µH	8.5 mm	0.335 "	1.5 MHz	10 %	Ferrite	0.18 A
Bourns Inc. RL822-221K-RC	105 ░C	-55 °C	Unshielded	680 mOhm	Through Hole	20 796 kHz	Radial Vertical Cylinder	11 mm	0.433 in	Drum Core Wirewound	220 µH	8.5 mm	0.335 "	2.7 MHz	10 %	Ferrite	0.38 A
Bourns Inc. RL822-6R8K-RC	105 ░C	-55 °C	Unshielded	35 mOhm	Through Hole	7.96 MHz 20	Radial Vertical Cylinder	11 mm	0.433 in	Drum Core Wirewound	6.8 µH	8.5 mm	0.335 "	29 MHz	10 %	Ferrite	2.1 A
Bourns Inc. RL822-681K-RC	105 ░C	-55 °C	Unshielded	2 Ohm	Through Hole	20 796 kHz	Radial Vertical Cylinder	11 mm	0.433 in	Drum Core Wirewound	680 µH	8.5 mm	0.335 "	1.6 MHz	10 %	Ferrite	0.21 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.48

General part information

820 µH Unshielded Drum Core, Wirewound Inductor 180 mA 2.7Ohm Max Radial, Vertical Cylinder
